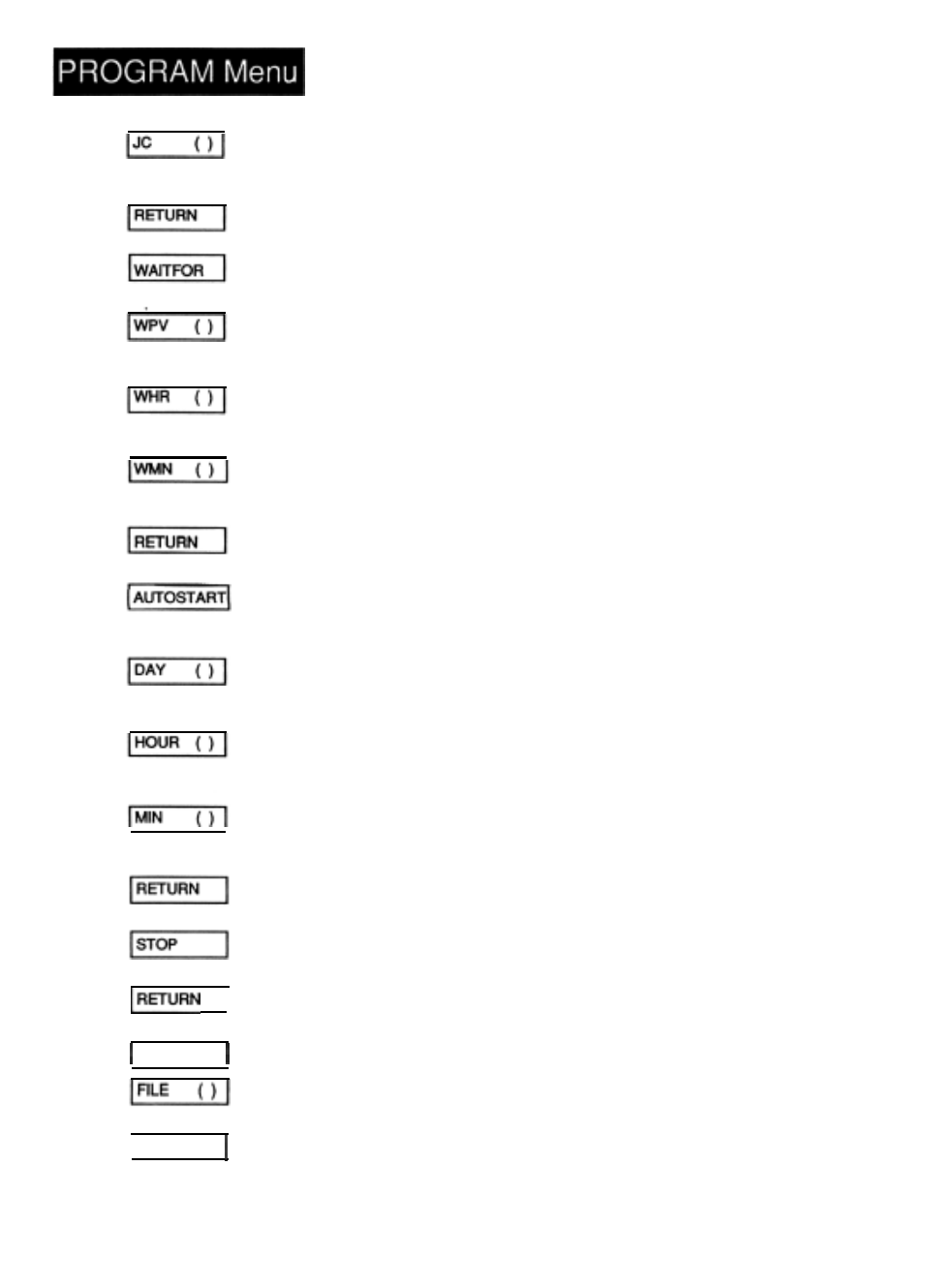

LINK One of six step types under the PROGRAM menu allowing you to link on8 file to another.
[
R E T U R N
The number of times that the Series 920 will jump to the step that was specified by the JS
step. 0 - Infinite number of jumps.
Range: 0 to 100 Default: 0
From RETURN, you can go back to the SYSTEM prompt by pressing the ENTER key, or
return to FILE? by pressing the MODE key.
One of six step types under the PROGRAM menu of the Series 920 that can be pro-
grammed to wait for a specific amount of time, or for a desired set point.
Temperature that the system compares against the process variable, and wait for, before
proceeding to the next step of the program.
Range: RAL to RAH Default: Unprogrammed
The hours that the system will wait for relative to when the step began. This is not a
measure of time-of-day.
Range: 0 to 23 hours Default: Unprogrammed
Represents the minutes that the syste will wait for, relative to when the step began.
This is not a measure of time-of-day.
Range: 0 to 59 minutes Default: Unprogrammed
From RETURN, you can go back to the SYSTEM prompt by pressing the ENTER key, or
return to FILE? by pressing the MODE key.
One of six step types under the
PROGRAM
menu of the Series 920 that can be pro-
grammed to automatically start at a certain time, depending on the DAY, HOUR, and MIN
parameter settings.
Represents the number of days that the 920 waits until AUTOSTART takes place. Each
time 00:00 is achieved, one day has gone by.
Range: 0 to 6 days Default: Unprogrammed
Stands for the hour that the 920 waits for the time-of-day clock before AUTOSTART takes
place. Under the AUTOSTART steptype.
Range: 0 to 23 hours Default: Unprogrammed
This parameter represents the minutes that the 920 will wait for on the time-of-day clock
before AUTOSTART takes place. Under the AUTOSTART steptype.
Range: 0 to 59 minutes Default: Unprogrammed
From RETURN, you can go back to the SYSTEM promptly pressing the ENTER key, or
retum to FlLE? by pressing the MODE key.
One of six step types under the PROGRAM menu of the Series 920, that will indicate the
end of any file.
From RETURN, you can go back to the SYSTEM prompt by pressing the ENTER key, or
retum to FILE? by pressing th8 MODE key.
Enter the number of the file that you want to link to from here.
Range: 1 to 10
Default: 1
From RETURN, you can go back to the SYSTEM prompt by pressing the ENTER key, or
return to FlLE? by pressing the MODE key.
52 WATLOW Series 920 User’s Manual
HOW To Program the Series 920, Chapter 6
