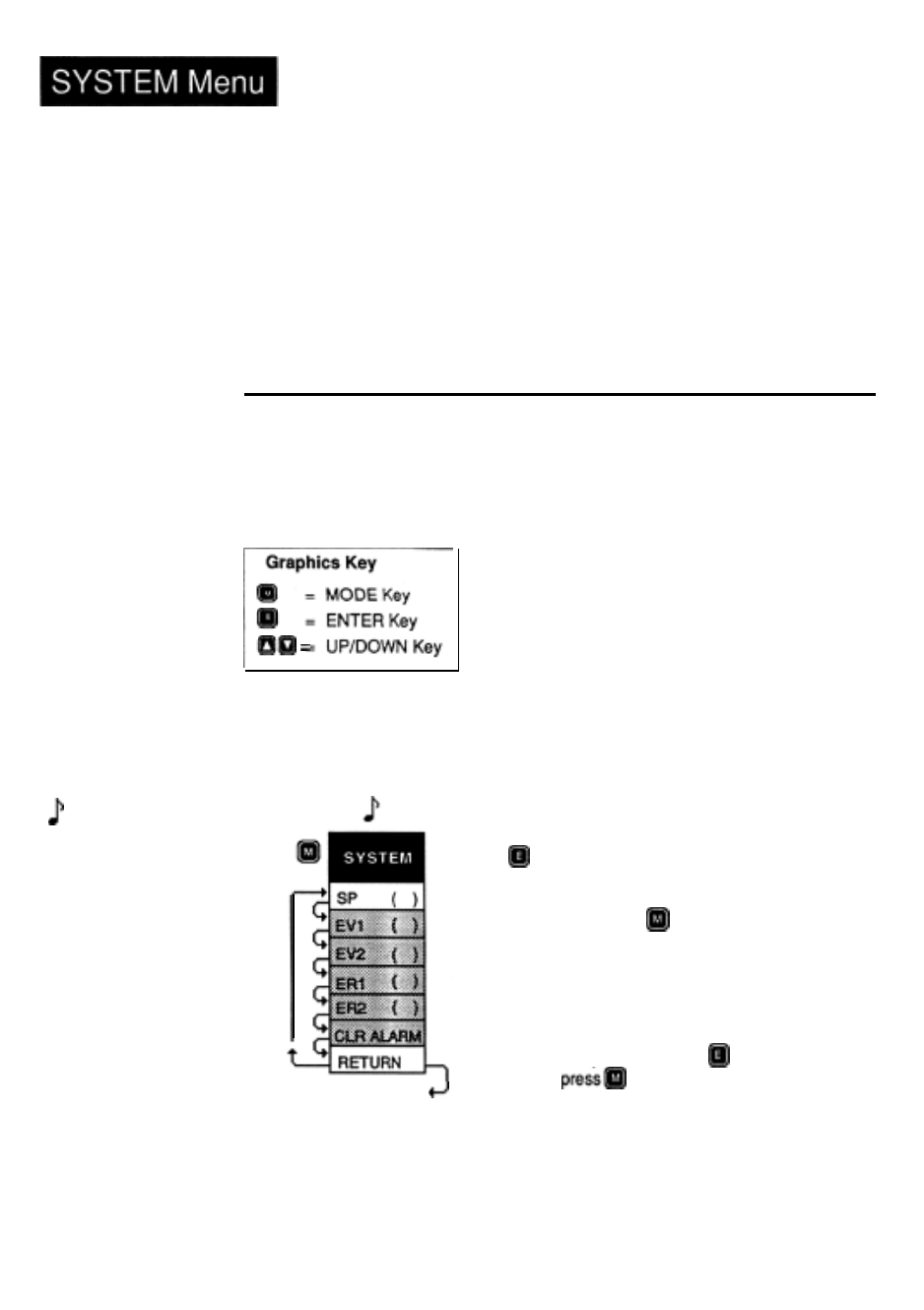

Figure 29 -
SYSTEM Key Flow
NOTE:
Shaded parameters
may not appear on
your control. These
parameters are
dependent on how
your control is
configured. See
Page 41 for more
information.
The next pages will show you each of the Series 920 menus and their prompts
and values. Each section, SYSTEM, SETUP, and PROGRAM, has a menu
graphic with a table of values, followed by prompt definitions. Don’t write in the
tables and charts here, but make copies to document your control.
Prompt definitions are also listed in the glossary.
SYSTEM Menu
The SYSTEM mode shows the status of the SYSTEM set point, event outputs,
and error prompts for clearing errors. Step through the SYSTEM menu using
the key flow diagram below, and table on the following page. Note that several
parameters are only visible when they are entered under SETUP, or when
errors exist.
Graphics Key
= MODE Key
= ENTER Key
UP/DOWN Key
Press to enter SYSTEM menu.
40
WATLOW Series 920 User’s Manual How To Program the Series 920, Chapter 6
To SYSTEM
After entering a value, continue to the next
parameter by pressing .
At any RETURN, you can press to return to
SYSTEM, or to return to the first parameter.
