PROGRAM Menu
From the Program menu, you can create your files. There can be up to ten
profiles; consisting of a total of 99 steps. You can only choose one step type
per step.

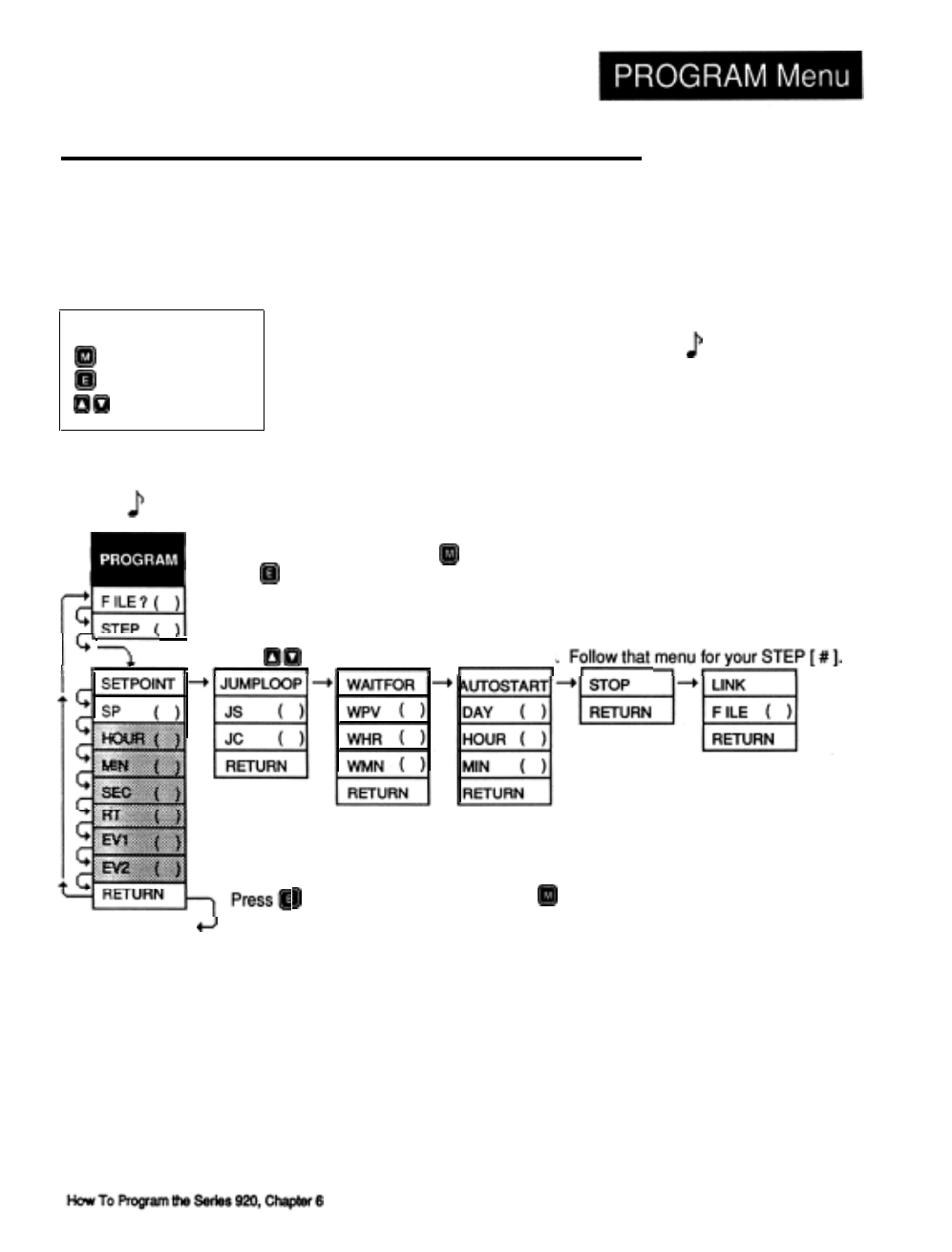

Figure 31 -
PROGRAM Key Flow
Graphics Key
= MODE Key
= ENTER Key
= UP/DOWN Key
NOTE:
Shaded parameters
may not appear on
your control. These
parameters are
dependent on how
your control is
configured. See
Pages 5 0 - 52 for
more lnformation.
At the SYSTEM prompt, press to continue to PROGRAM mode.
Press to enter the PROGRAM menu.
Use the to select one of the six step types
to return to SYSTEM, or press to return to the file prompt.
To SYSTEM
