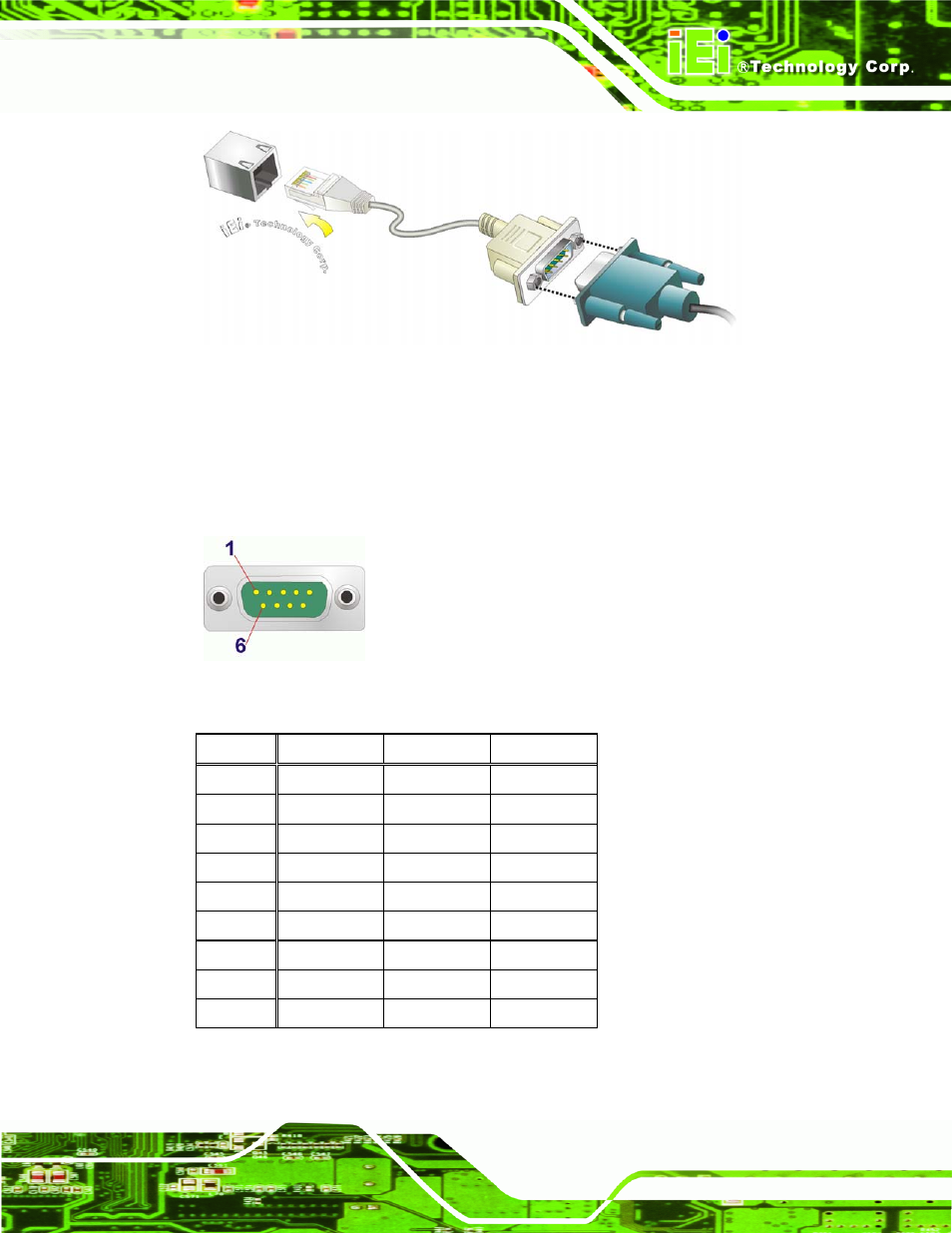

Figure 3-30: RJ-45 Serial Port Connector

Step 4:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

The DB-9 connector pinouts are listed below.

Figure 3-31: DB-9 Connector Pinout Locations

PIN NO.

RS-232

RS-422

RS-485

1 DCD RX+ -

2 RX

RX- -

3 TX

TX+ DATA+

4 DTR TX- DATA-

5 GND -

6 DSR -

7 RTS -

8 CTS -

9 RI

Table 3-1: DB-9 Connector Pinout
