Step 6: Replace the internal cover and back cover using previously removed retention
screws. Step 0:
3.6 AT/ATX Mode Selection
AT or ATX power mode can be used on the AFL2-10A-N28. The selection is made
through an AT/ATX switch located on the bottom panel. To select AT mode or ATX mode,
follow the steps below.
Step 1: Locate the AT/ATX switch on the bottom panel (Figure 3-9).

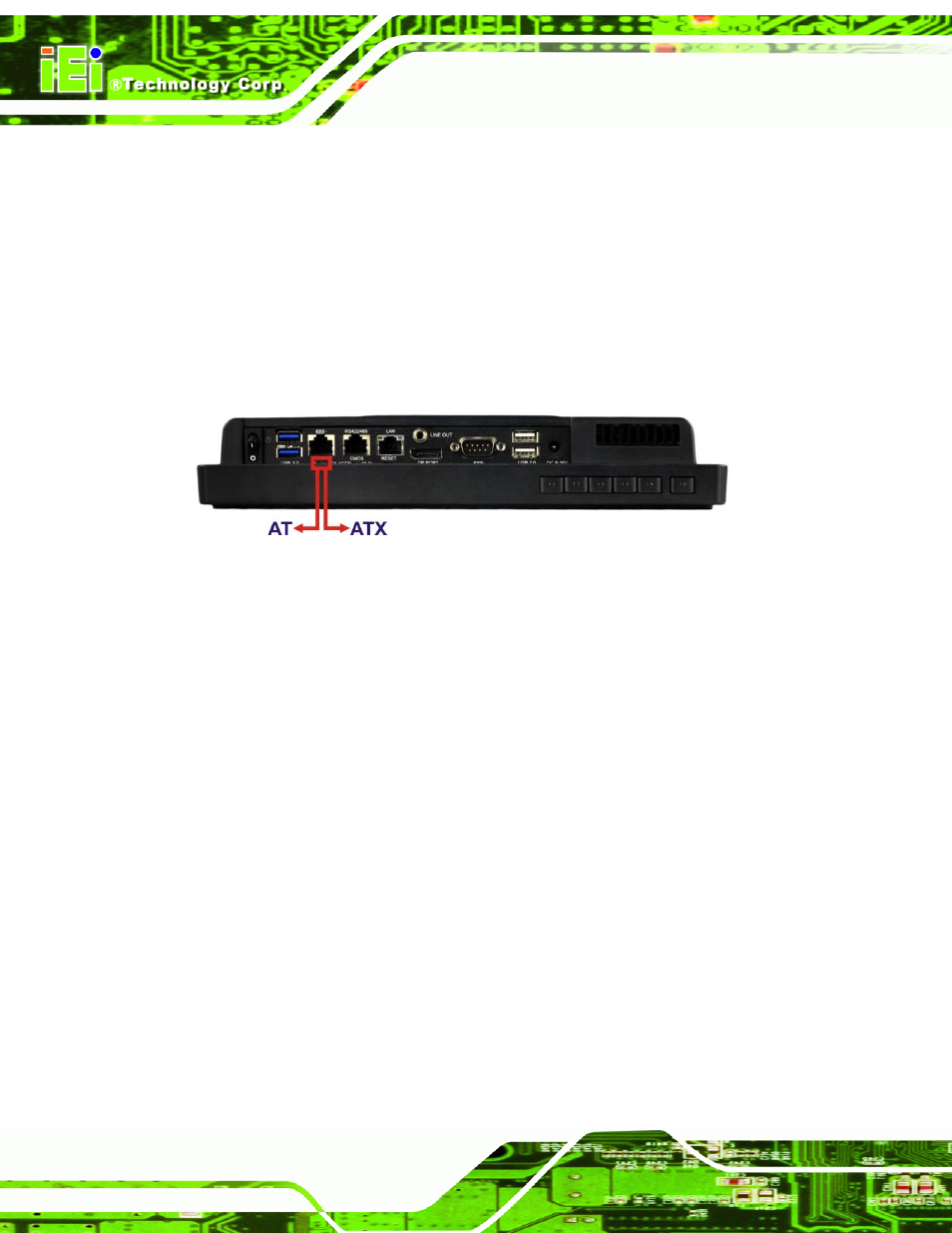

Figure 3-9: AT/ATX Switch Location
Step 2: Adjust the AT/ATX switch. Step 0:
3.6.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFL2-10A-N28 panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
ƒ ATM
ƒ Self-service kiosk
ƒ Plant environment monitoring system
ƒ Factory automation platform
ƒ Manufacturing shop flow
3.6.2 ATX Power Mode
With the ATX mode selected, the AFL2-10A-N28 panel PC goes in a standby mode when
it is turned off. The panel PC can be easily turned on via network or a power switch in
standby mode. Remote power control is perfect for advertising applications since the
