AFL2-10A-N28 Panel PC

Page 41

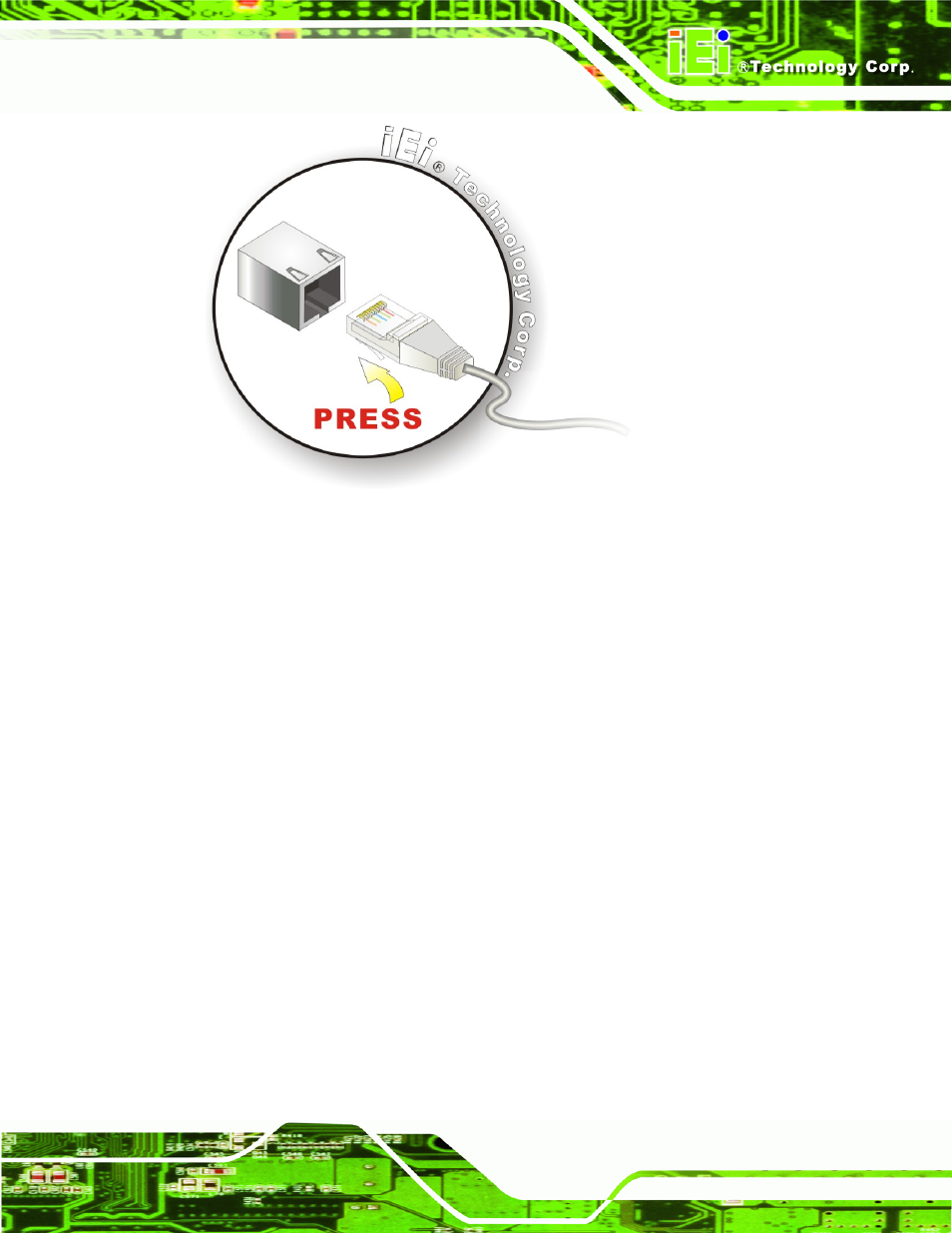

Figure 3-28: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the external interface.

3.12.4 Serial Device Connection

There are two external RS-232 connectors (one by DB-9 and one by RJ-45) and one

RS-422/485 RJ-45 connector for serial device connection. Follow the steps below to

connect a serial device to the AFL2-10A-N28.

3.12.4.1 DB-9 Serial Port Connection

Follow the steps below to connect a serial device to the DB-9 connector of the

AFL2-10A-N28 panel PC.

Step 1:

Locate the DB-9 connector. The location of the DB-9 connectors is shown in

Chapter 1.

Step 2:

Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the bottom panel. See Figure 3-29.
