AFL2-10A-N28 Panel PC

Page 40

Step 1:

Locate the DisplayPort connector. The location is shown in Chapter 3.

Step 2:

Align the connector. Align the DisplayPort connector with the DisplayPort port.

Make sure the orientation of the connector is correct.

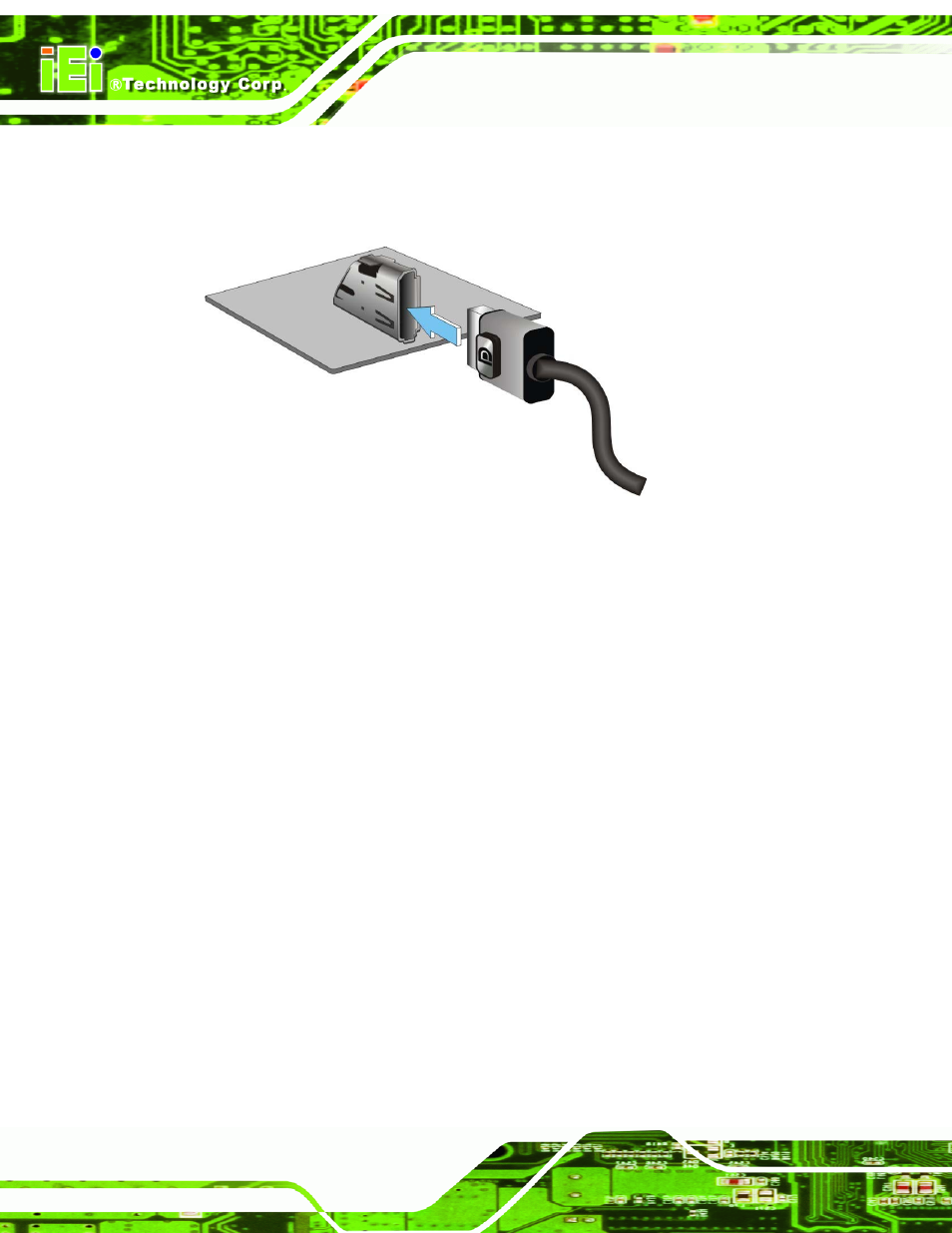

Figure 3-27: DisplayPort Connection

Step 3:

Insert the DisplayPort connector. Gently insert the DisplayPort connector. The

connector should engage with a gentle push. If the connector does not insert

easily, check again that the connector is aligned correctly, and that the connector

is being inserted with the right way up.

3.12.3 LAN Connection

There is one external RJ-45 LAN connectors The RJ-45 connector enables connection to

an external network. To connect a LAN cable with an RJ-45 connector, please follow the

instructions below.

Step 1:

Locate the RJ-45 connector. The location of the LAN connector is shown in

Chapter 1.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with the

RJ-45 connectors on the AFL2-10A-N28. See Figure 3-28.
