3.12.1 Audio Connection
The audio jack on the external audio connector enables the AFL2-10A-N28 to be
connected to a stereo sound setup. To install the audio devices, follow the steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
Step 2: Plug the audio plug into the audio jack. Plug the audio plug into the audio
jack. If the plug on your speakers is different, an adapter will need to be used to
plug them into the audio jack. The audio jack on the AFL2-10A-N28 is a line-out
port which connects to a headphone or a speaker.

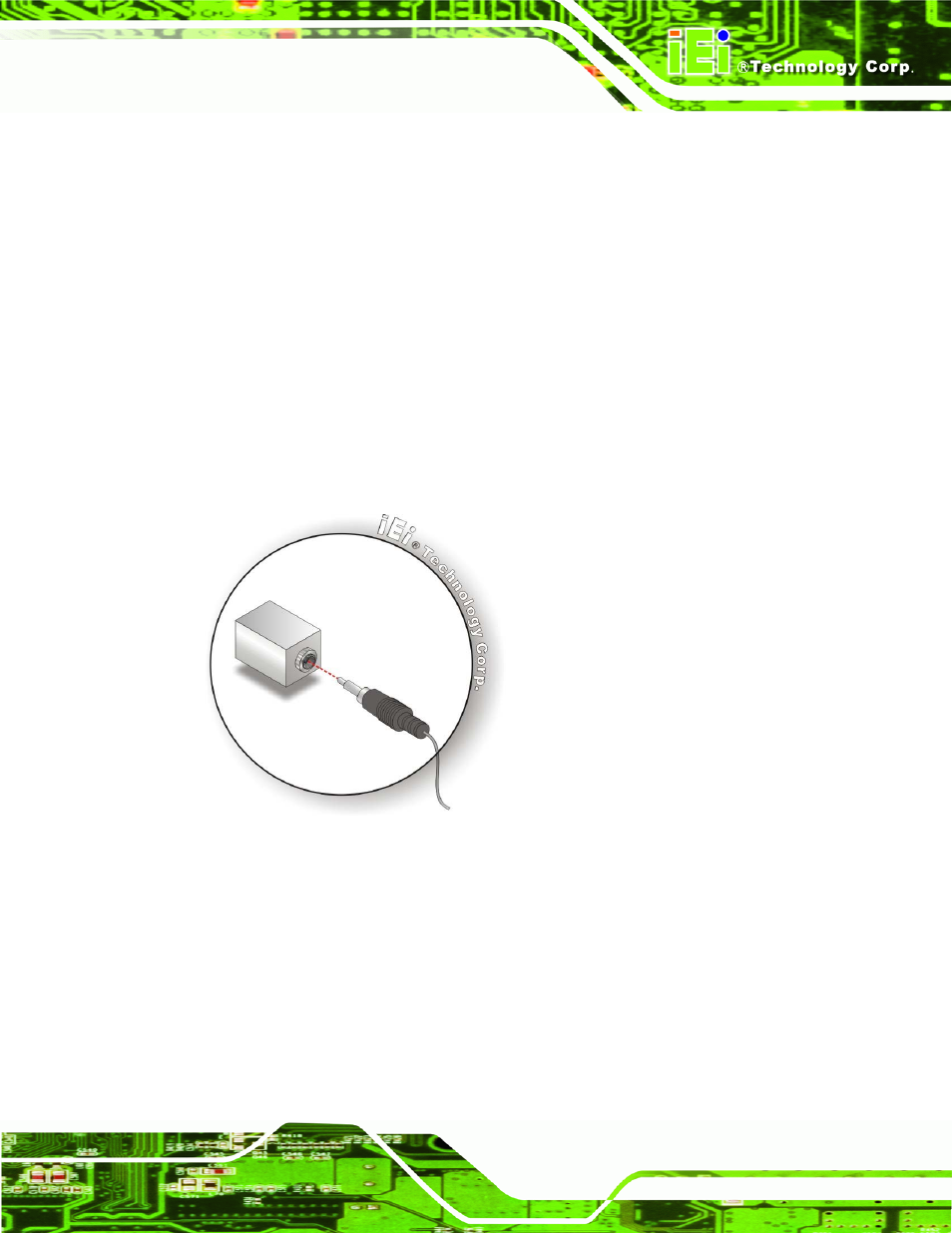

Figure 3-26: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
3.12.2 DisplayPort Connection
The DisplayPort connector transmits a digital signal to compatible DisplayPort display
devices such as a TV or computer screen. To connect the DisplayPort cable to the
AFL2-10A-N28, follow the steps below.
