1 x RS-232 RJ-45 connector (COM3)

1 x RS-422/485 RJ-45 connector

2 x USB 2.0 connectors

2 x USB 3.0 connectors

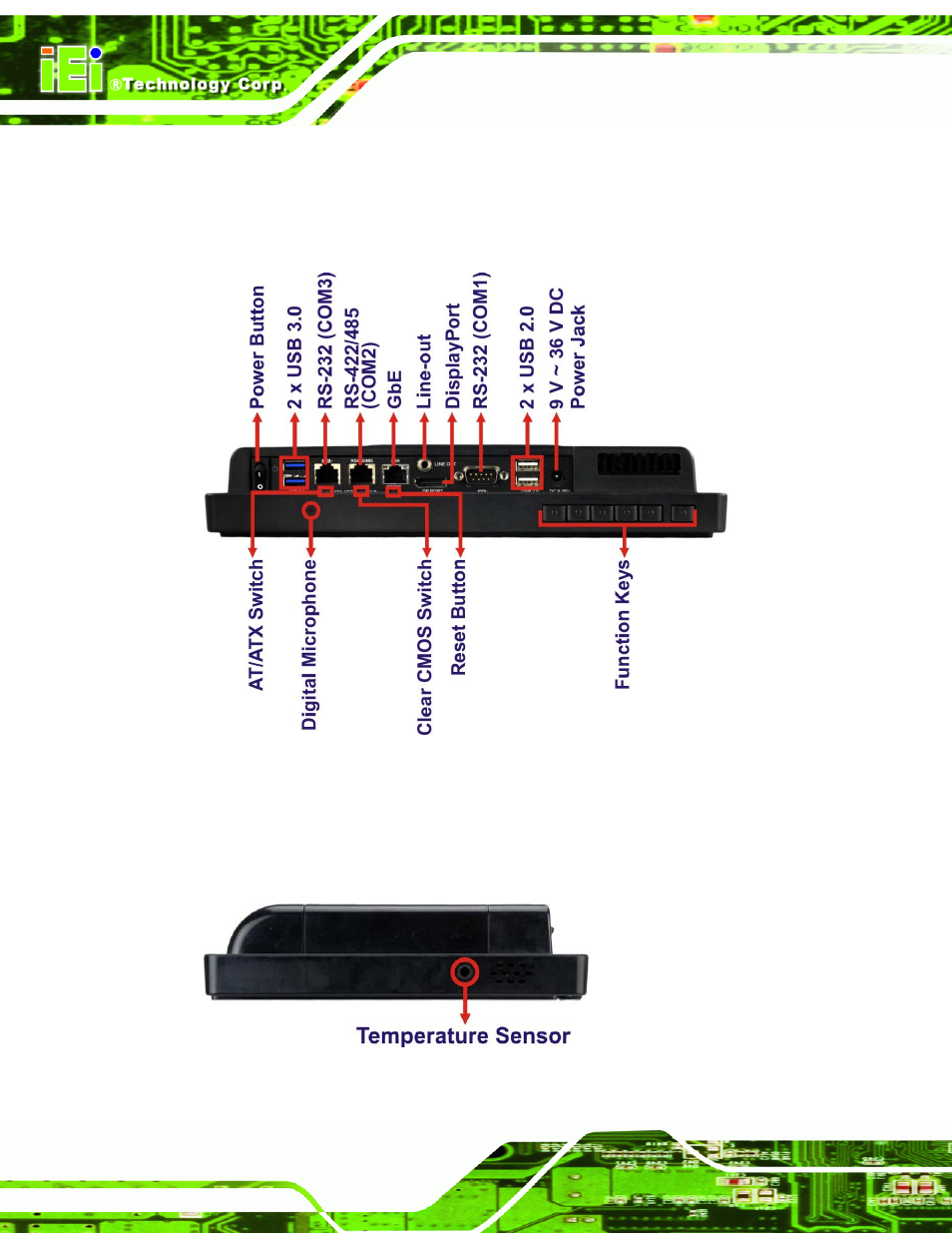

Figure 1-6: Bottom Panel

1.2.4 Left Side Panel

The left side panel of the AFL2-10A-N28 has a temperature sensor (Figure 1-7).

Figure 1-7: Left Side Panel
