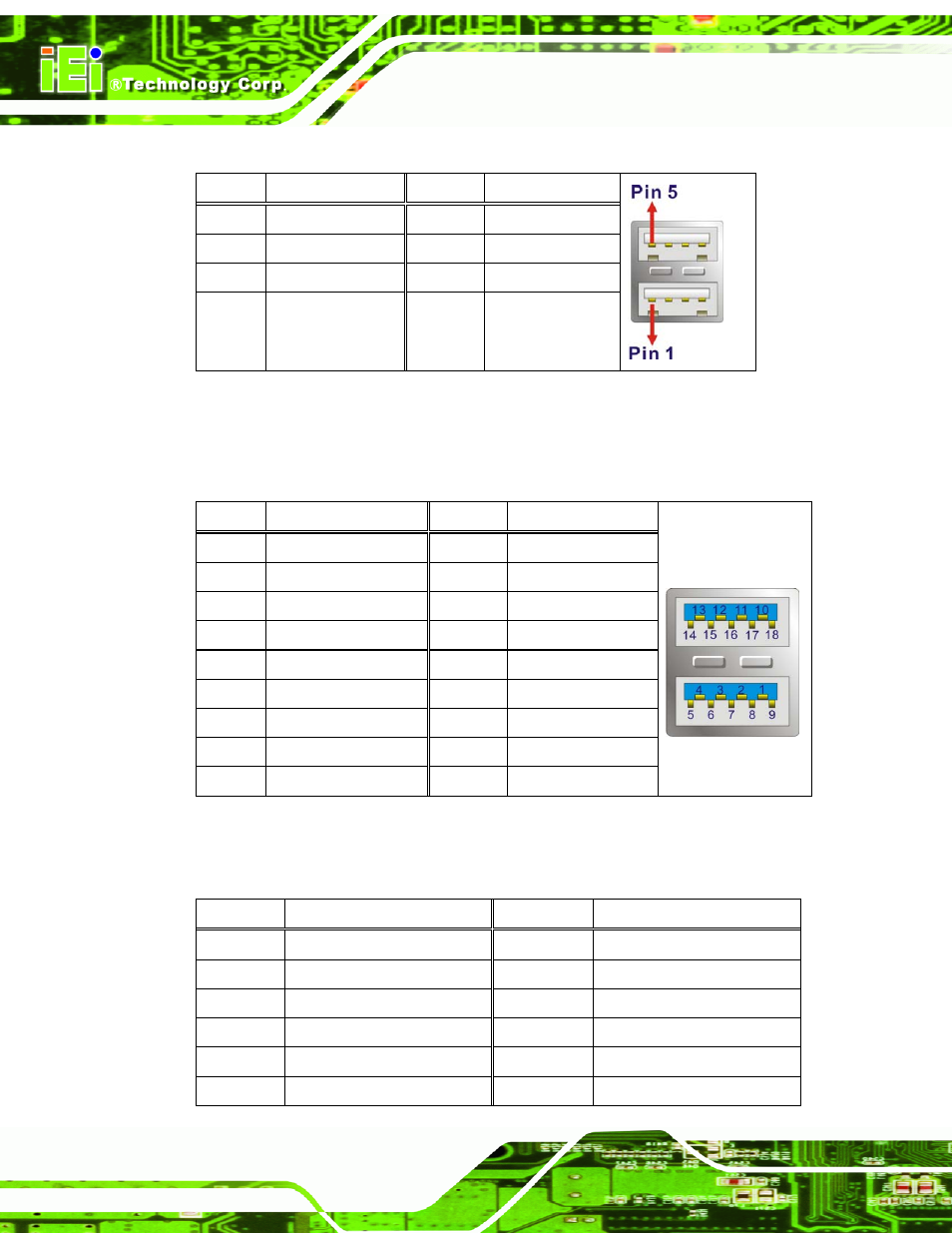

7.3.6 USB 2.0 Connectors (USB1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 POWER 5 Power
2 DATA0- 6 DATA1-
3 DATA0+ 7 DATA1+
4 GND 8 GND
Table 7-35: USB 2.0 Connectors (USB1) Pinouts
7.3.7 USB 3.0 Connectors (USB3_1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 USB3_PWR1 10 USB3_PWR2
2 USB2P0_DM1_L 11 USB2P0_DM2_L
3 USB2P0_DP1_L 12 USB2P0_DP2_L
4 GND 13 GND
5 USB3P0_RXDN1_L 14 USB3P0_RXDN2_L
6 USB3P0_RXDP1_L 15 USB3P0_RXDP2_L
7 GND 16 GND
8 USB3P0_TXDN1_C_L 17 USB3P0_TXDN2_C_L
9 USB3P0_TXDP1_C_L 18 USB3P0_TXDP2_C_L
Table 7-36: USB 3.0 Connectors (USB3_1) Pinouts
7.3.8 DisplayPort Connector (DISPLAY_PORT1)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 C_DDI0_DP_DATA0 2 GND
3 C_DDI0_DP_DATA0# 4 C_DDI0_DP_DATA1
5 GND 6 C_DDI0_DP_DATA1#
7 C_DDI0_DP_DATA2 8 GND
9 C_DDI0_DP_DATA2# 10 C_DDI0_DP_DATA3
11 GND 12 C_DDI0_DP_DATA3#
