AFL2-10A-N28 Panel PC

Page 85

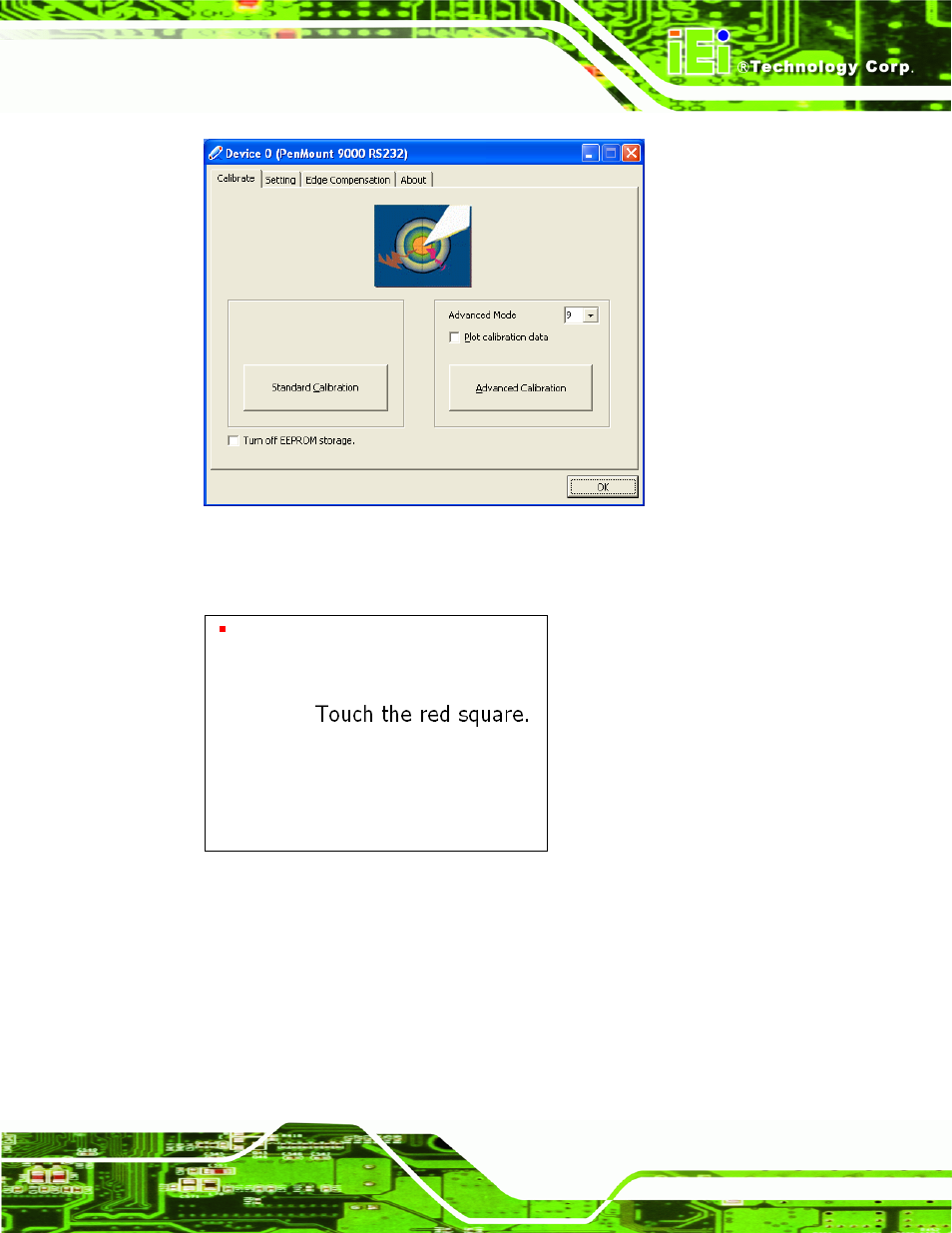

Figure 5-20: Calibration Initiation Screen

Step 9:

The calibration screen in is shown. See Figure 5-21.

Figure 5-21: Calibration Screen

Step 10:

Follow the instructions. The user is asked touch the screen at five specified

points after which the screen is calibrated.

Step 0:
