AFL2-10A-N28 Panel PC
Page 115

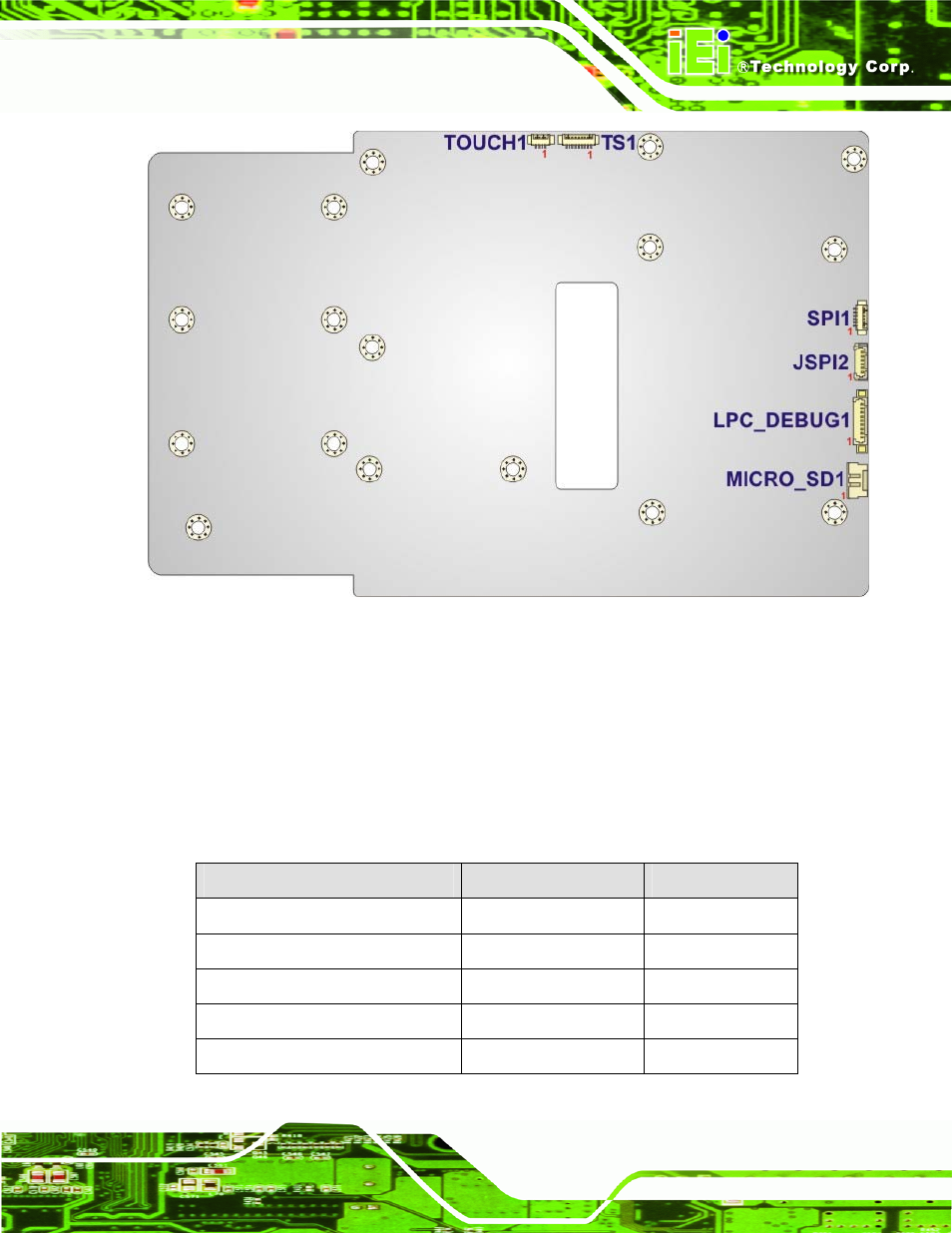

Figure 7-2: Main Board Layout Diagram (Solder Side)
7.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. The table below shows a list of the
peripheral interface connectors on the AFL2MB-15A. Pinouts of these connectors can be
found in the following sections.
Connector Type Label
Audio connector 10-pin header AUDIO1
Battery connector 2-pin wafer CN2
Bluetooth USB connector 4-pin wafer BLUETOOTH1
CRT connector 10-pin header VGA1
Debug port 9-pin wafer LPC_DEBUG1
