Page 126

AFL2-10A-N28 Panel PC

Page 109

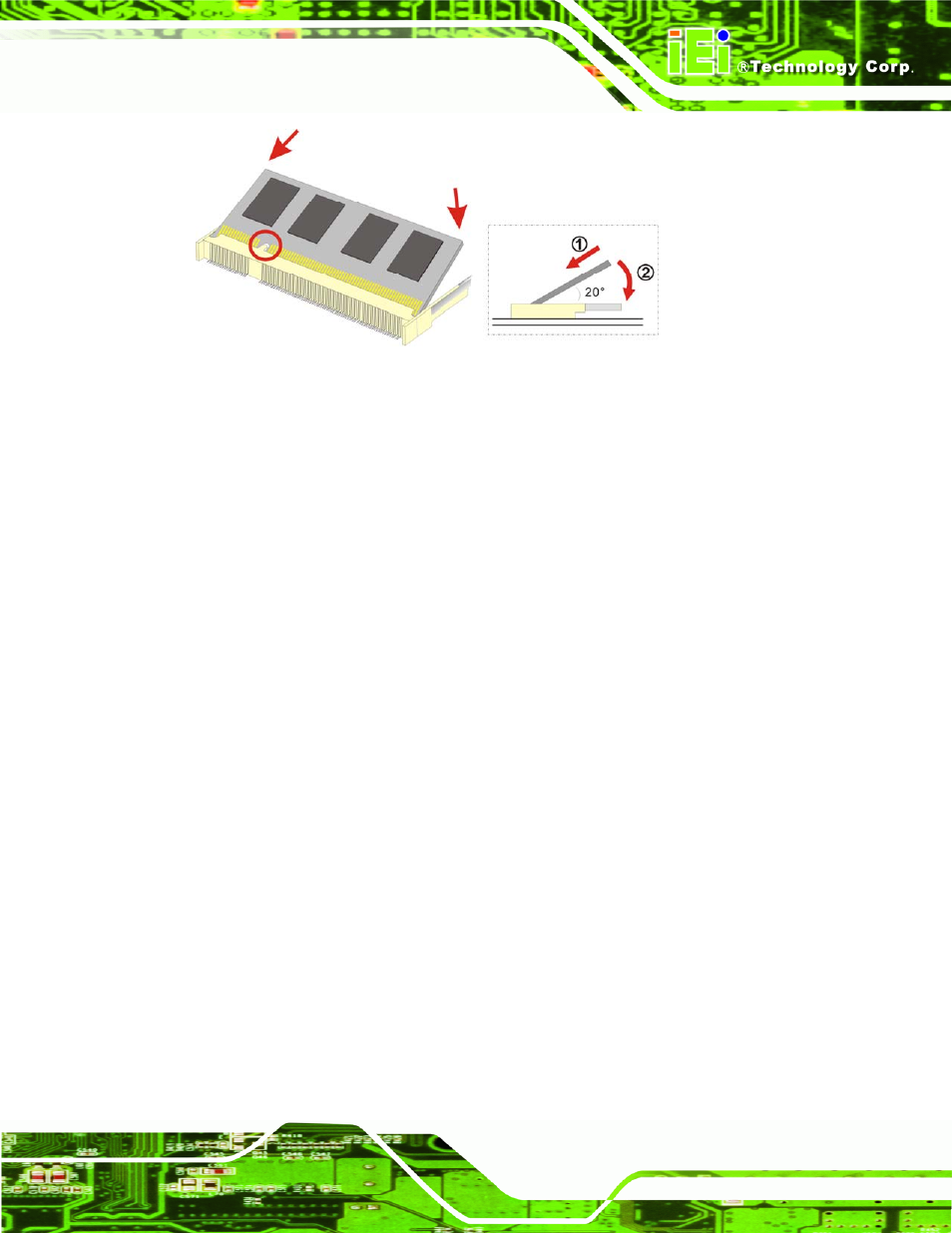

Figure 6-4: DDR SO-DIMM Module Installation

Step 11:

Replace the internal cover and secure it to the chassis using the previously

removed retention screws.

Step 12:

Replace the back cover and secure it using the previously removed retention

screws.

Step 0:

6.5.2 WLAN Card Replacement

The AFL2-10A-N28 has one WLAN card slot. To replace the WLAN card, follow the

instructions below.

Step 1:

Follow all anti-static procedures. See Section 6.2.

Step 2:

Turn off the power. See Section 6.3.

Step 3:

Remove the back cover. See Section 6.4.1 above.

Step 4:

Remove the internal back cover. See Section 6.4.2 above.

Step 5:

Locate the WLAN card.

Step 6:

Disconnect the main and auxiliary antennas on the WLAN module and push the

two spring clips in to release the WLAN card (Figure 6-5).
