AFL2-10A-N28 Panel PC

Page 84

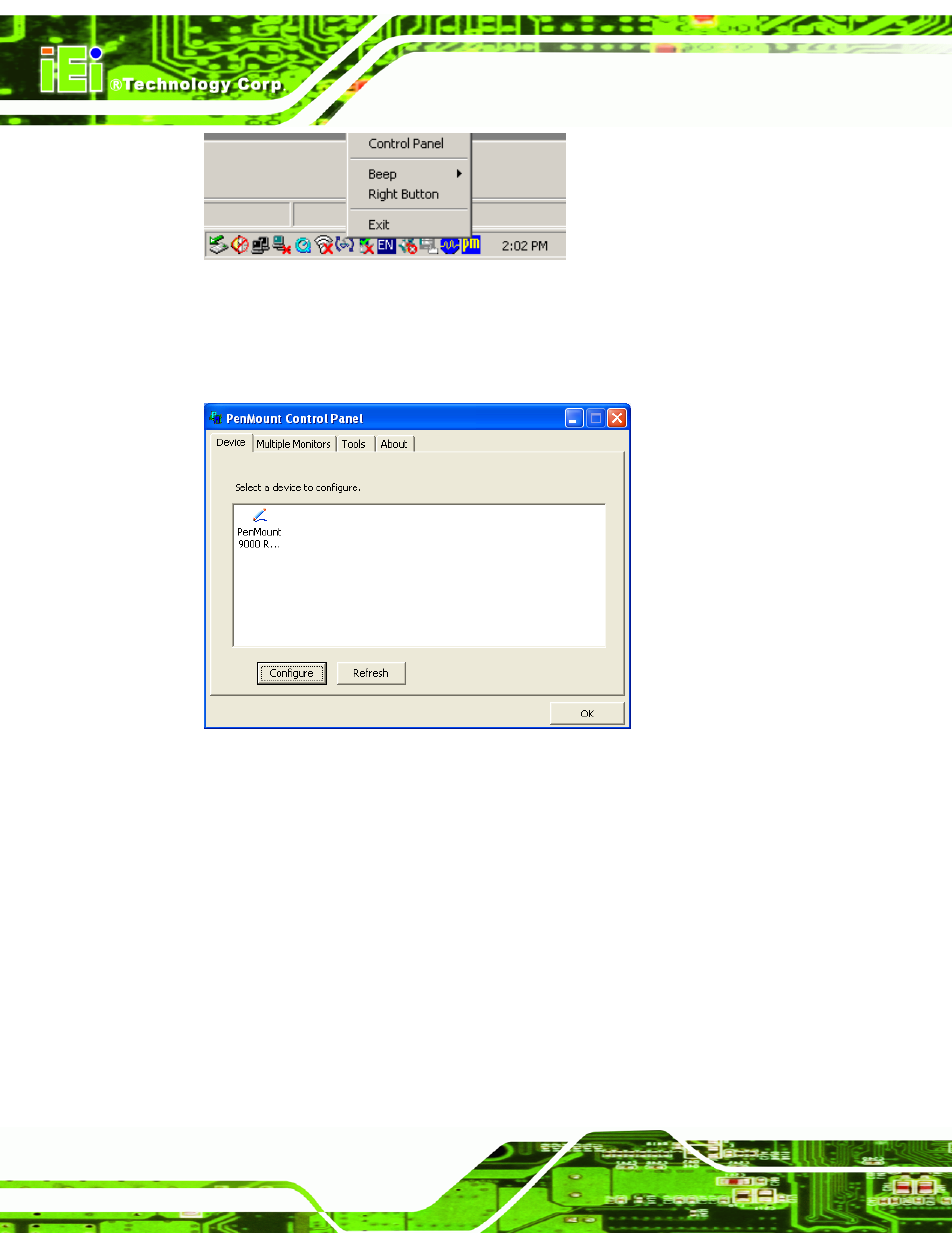

Figure 5-18: PenMount Monitor Popup Menu

Step 4:

Click Control Panel in the pop up menu shown in Figure 5-18.

Step 5:

The configuration screen in Figure 5-19 appears.

Figure 5-19: Configuration Screen

Step 6:

Double click the PenMount 9000 icon as shown in Figure 5-19.

Step 7:

The calibration initiation screen in Figure 5-20 appears.

Step 8:

Select the Standard Calibration button as shown in Figure 5-20.
