AFL2-10A-N28 Panel PC
Page 3
1.1.1 Features
The AFL2-10A-N28 features are listed below:
ƒ Flat-bezel LCD with LED backlight
ƒ 1.86 GHz Intel® Atom™ N2800 dual-core processor
ƒ One 204-pin DDR3 SO-DIMM slot (system max. 4 GB) preinstalled with 2 GB
memory
ƒ 5-wire resistive type touchscreen
ƒ Wi-Fi 802.11b/g/n 2T2R high speed wireless
ƒ Built-in 2-megapixel camera with AF, AE and AWB capabilities
ƒ Built-in two 1.5 W speakers and digital microphone
ƒ Optional RFID reader
ƒ IP 64 compliant front panel
1.2 External Overview
1.2.1 Front Panel
The front side of the AFL2-10A-N28 is a flat bezel panel TFT LCD screen surrounded by a
PC/ABS plastic frame.

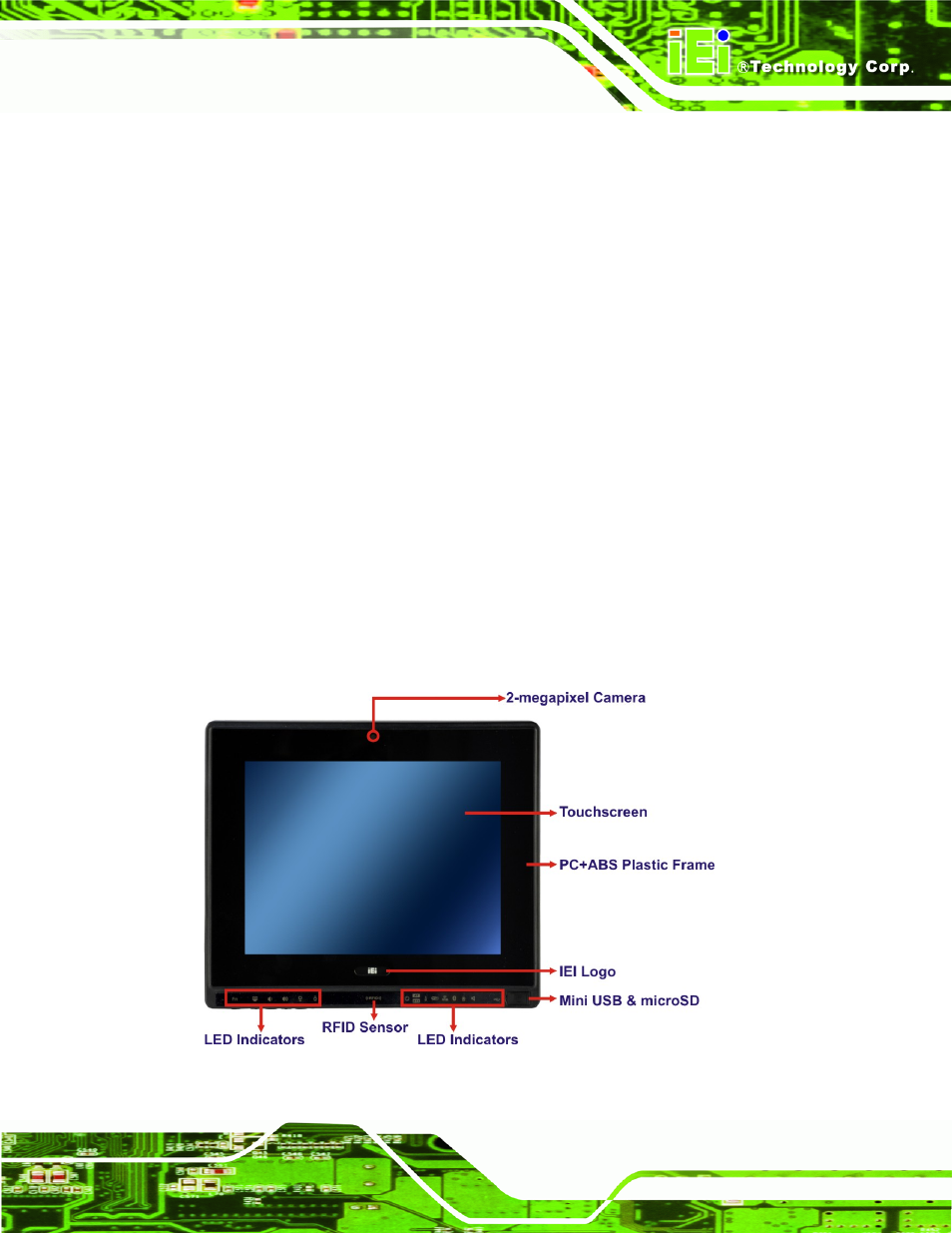

Figure 1-2: Front View
