3.5 RFID Reader Installation (Optional)

An optional RFID reader can be installed in the AFL2-10A-N28. To install the RFID reader,

follow the instructions below.

Step 1:

Remove a total of eleven (11) retention screws from the back cover (Figure 3-5).

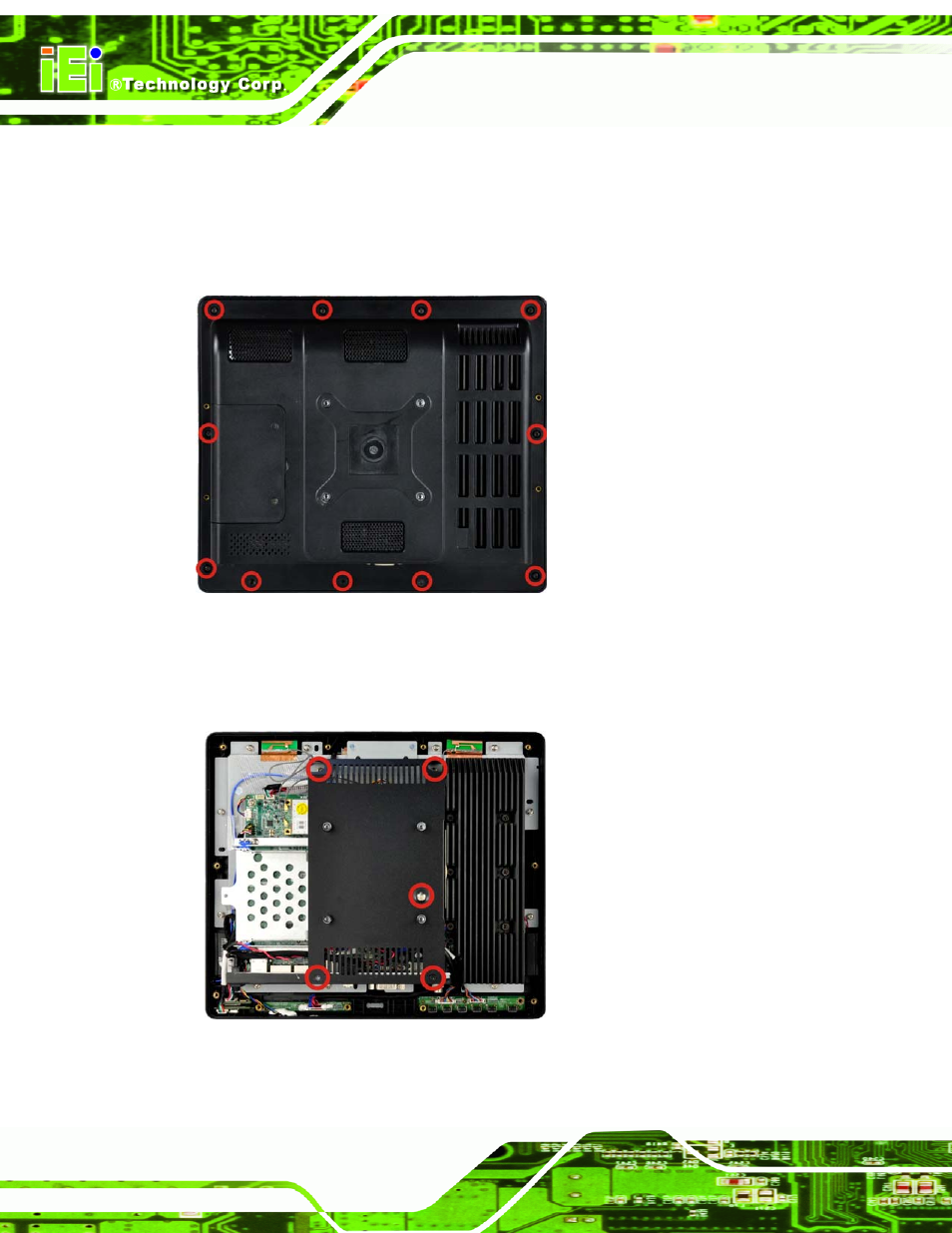

Figure 3-5: Back Cover Retention Screws

Step 2:

Remove the five (5) retention screws securing the internal cover to the chassis

(Figure 3-6).

Figure 3-6: Internal Cover Retention Screws
