AFL2-10A-N28 Panel PC

Page 37

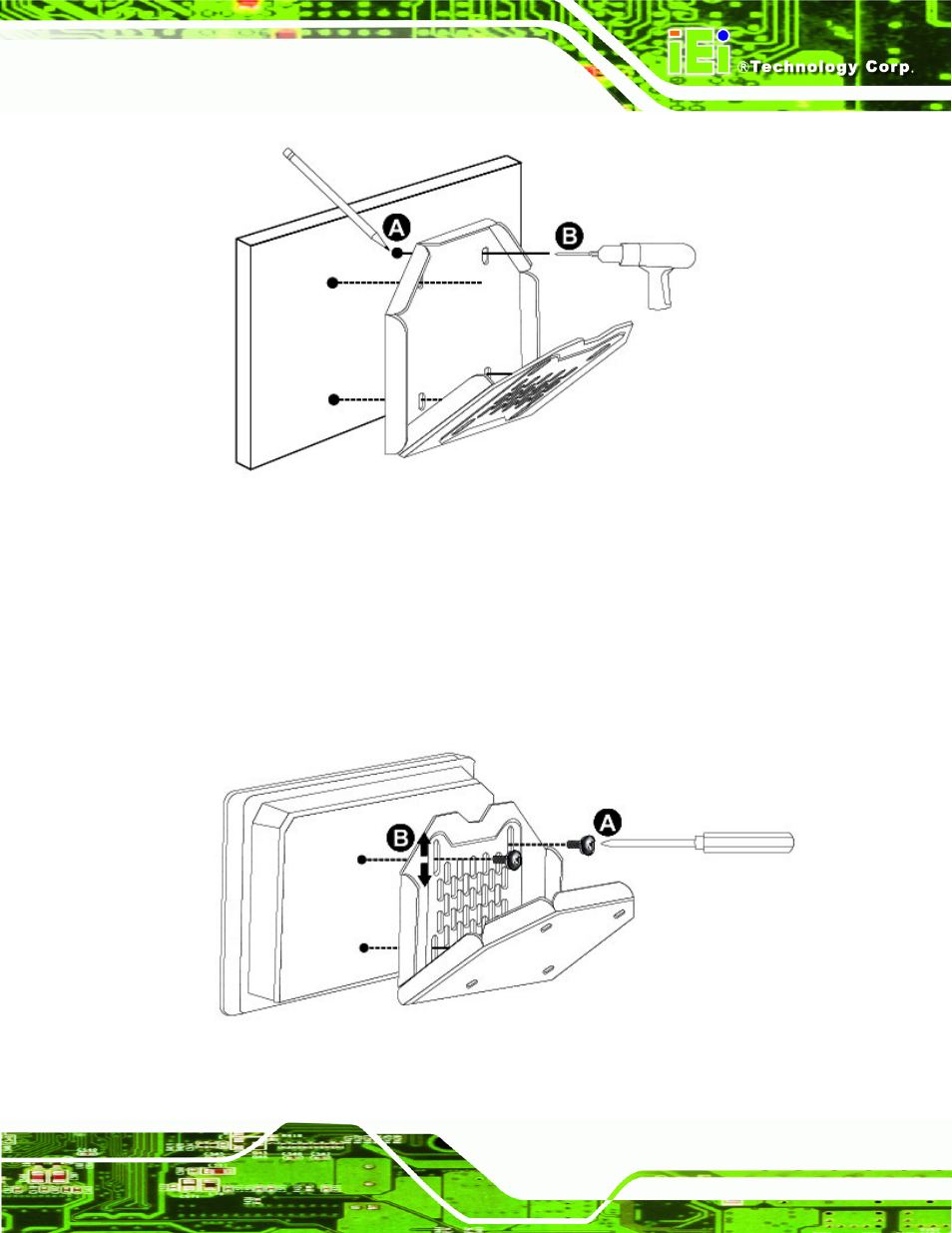

Figure 3-23: Drill Pilot Holes for V-Stand

Step 2:

Align the screw holes on the V-Stand with the VESA mount screw holes on the

system rear panel.

Step 3:

Insert the four VESA mount screws into the four screw holes on the system rear

panel. Adjust the V-Stand to a proper position.

Step 4:

Tighten until the screw shank is secured against the rear panel.

Figure 3-24: Secure System to V-Stand
