7.3.1 Ethernet Connector (JP6)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 DA+

5 DC-

2 DA-

6 DB-

3 DB+

7 DD+

4 DC+

8 DD-

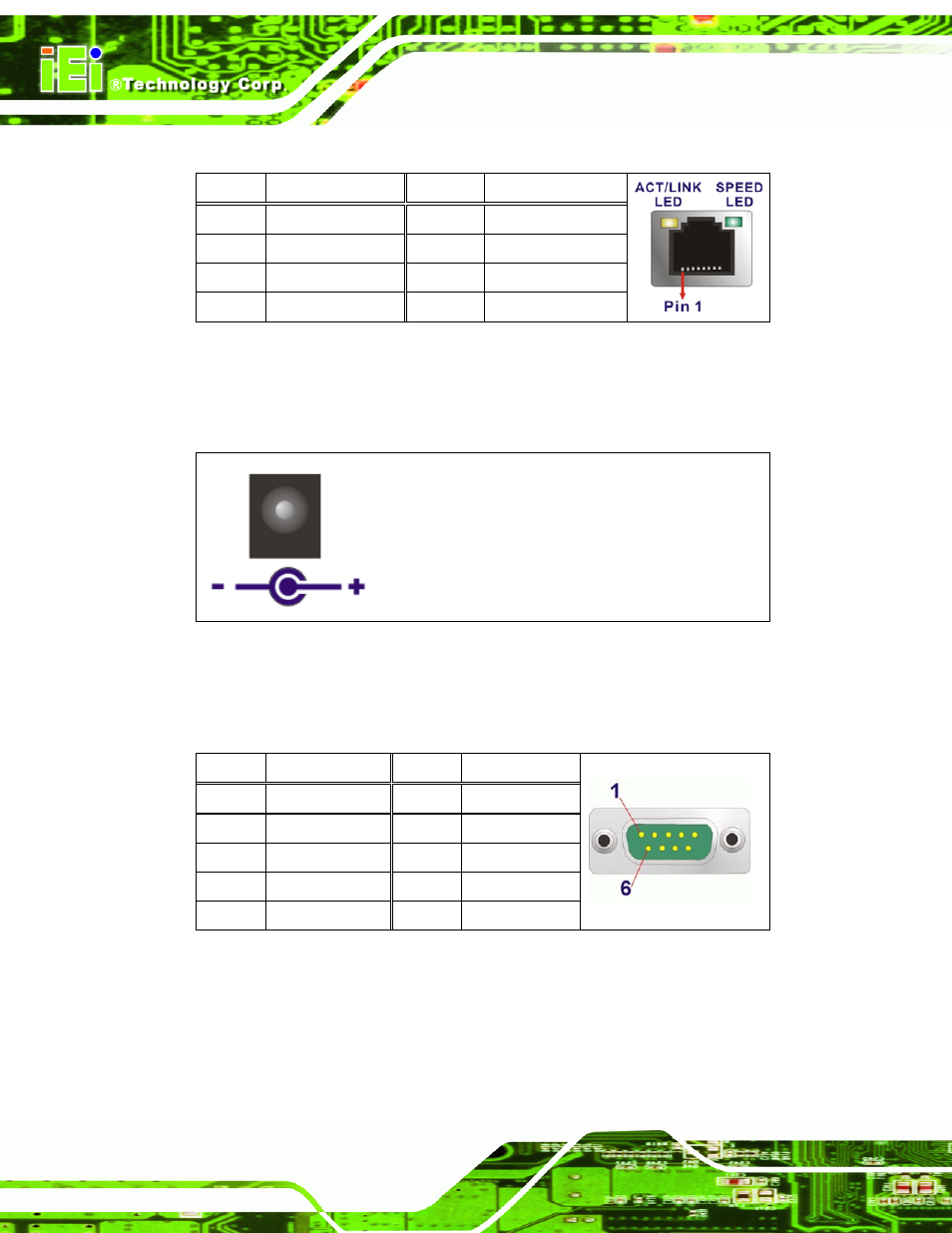

Table 7-29: Ethernet Connector (JP6) Pinouts

7.3.2 Power Connector (DC_IN1)

Table 7-30: Power Connector (DC_IN1) Pinouts

7.3.3 RS-232 DB-9 Serial Ports (COM1)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 NDCD1

2 NRX1

3 NTX1

4 NDTR1

5 GND

6 NDSR1

7 NRTS1

8 NCTS1

9 NRI1

Table 7-31: RS-232 DB-9 Serial Ports (COM1) Pinouts
