Figure 3-1: hdd cover retention screws, Figure 3-2: hdd bracket removal – IEI Integration AFL2-10A-N28 User Manual

Page 37

AFL2-10A-N28 Panel PC

Page 20

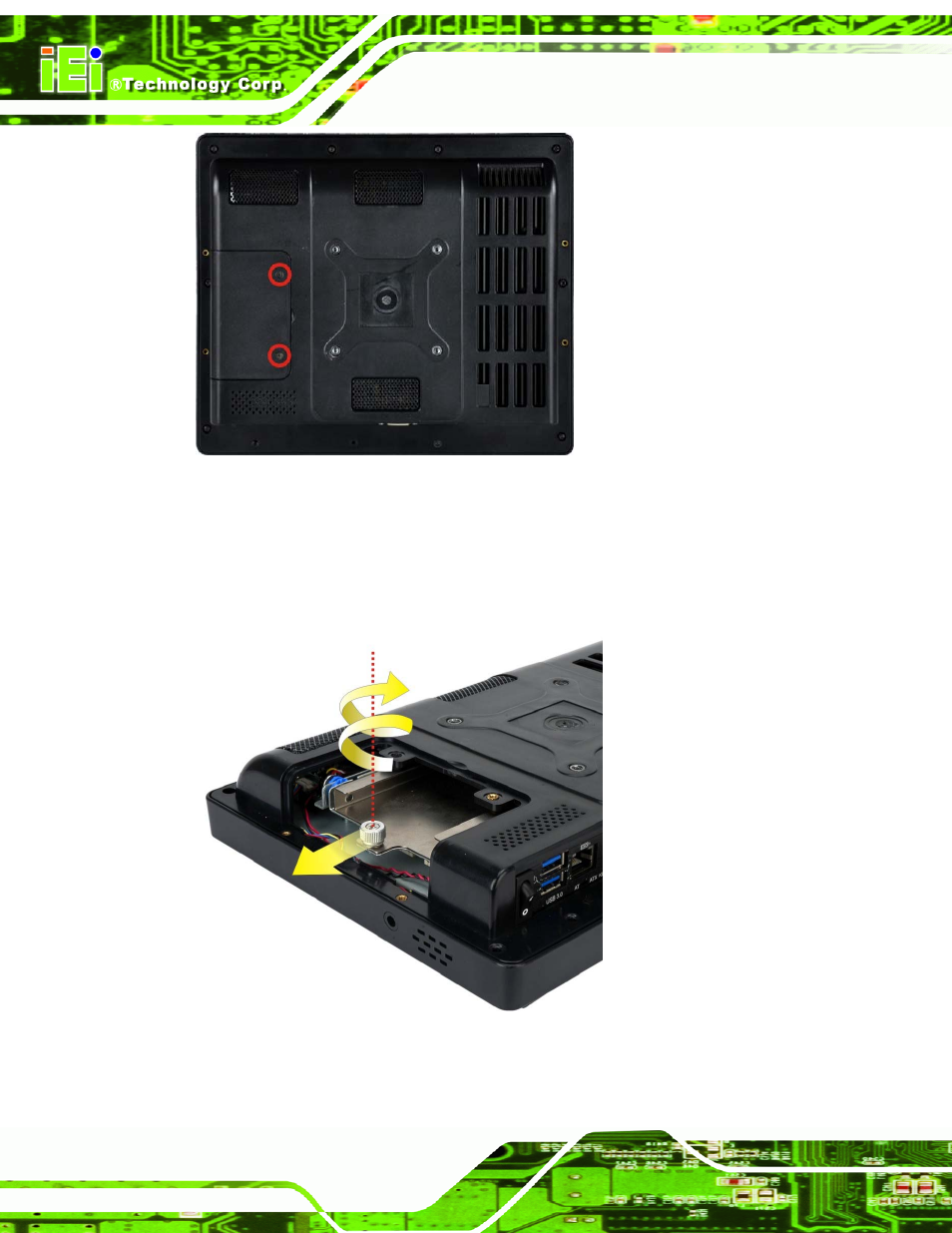

Figure 3-1: HDD Cover Retention Screws

Step 2:

Remove the HDD cover from the device.

Step 3:

Loosen the captive screw to release the HDD bracket from the chassis. Slide the

HDD bracket out of the device as shown (Figure 3-2).

Figure 3-2: HDD Bracket Removal

Step 4:

Insert an HDD into the bracket as shown in Figure 3-3.
