IMB-Q354 microATX Motherboard

Page 79

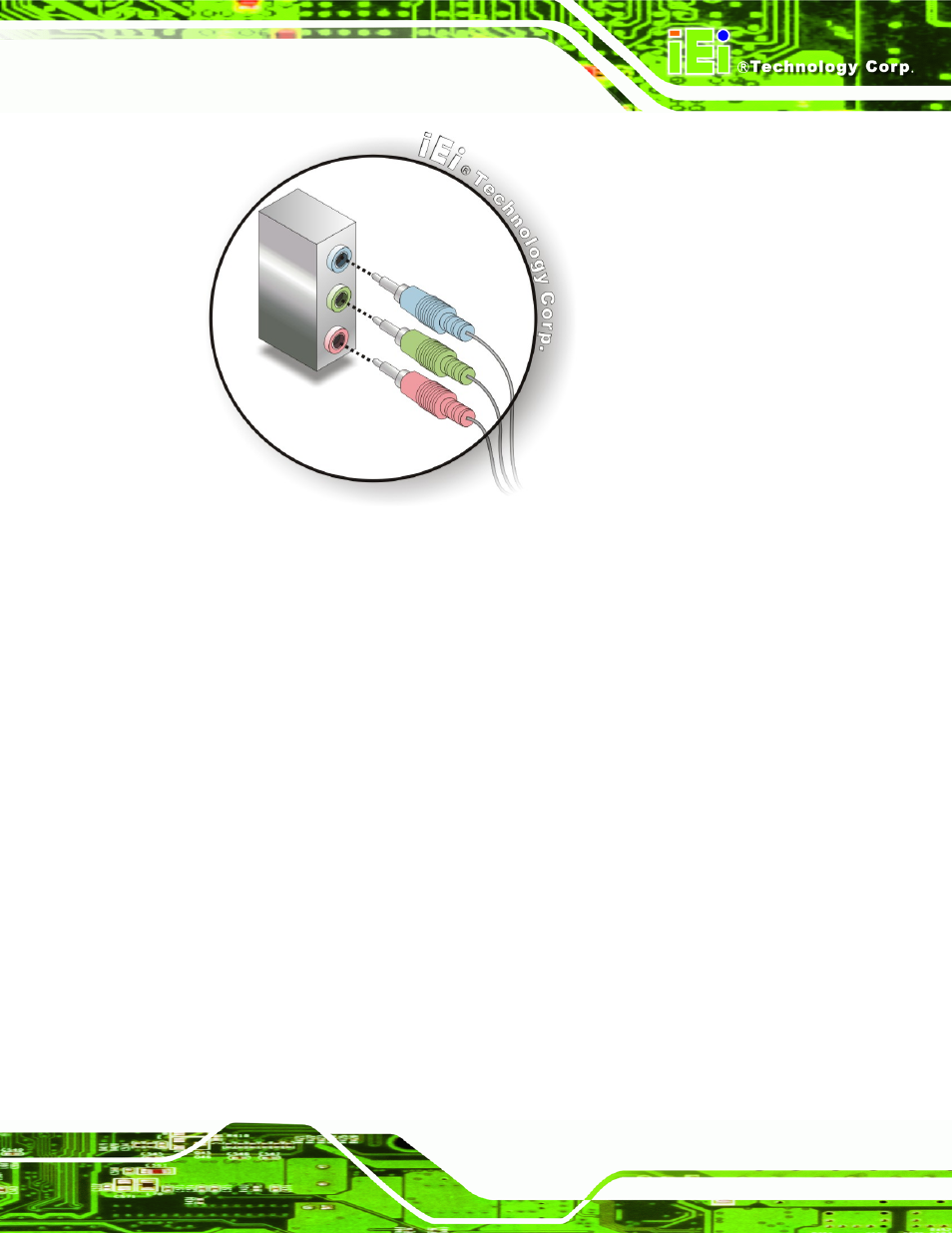

Figure 4-17: Audio Connectors

4.8.2 LAN Connection (Single Connector)

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors. The locations of the USB connectors are shown

in Chapter 4.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the IMB-Q354. See Figure 4-18.
