IMB-Q354 microATX Motherboard

Page 71

J_COM_F2

Description

Short 1 – 2

COM 2 RI Pin use voltage

Short 2 – 3

COM 2 RI Pin use RI

Default

J_COM_F3

Description

Short 1 – 2

COM 3 RI Pin use voltage

Short 2 – 3

COM 3 RI Pin use RI

Default

J_COM_F4

Description

Short 1 – 2

COM 4 RI Pin use voltage

Short 2 – 3

COM 4 RI Pin use RI

Default

Table 4-3: COM Port Pin 9 Setting Jumper Settings

The COM Port Pin 9 Setting jumper locations are shown in Figure 4-10 below.

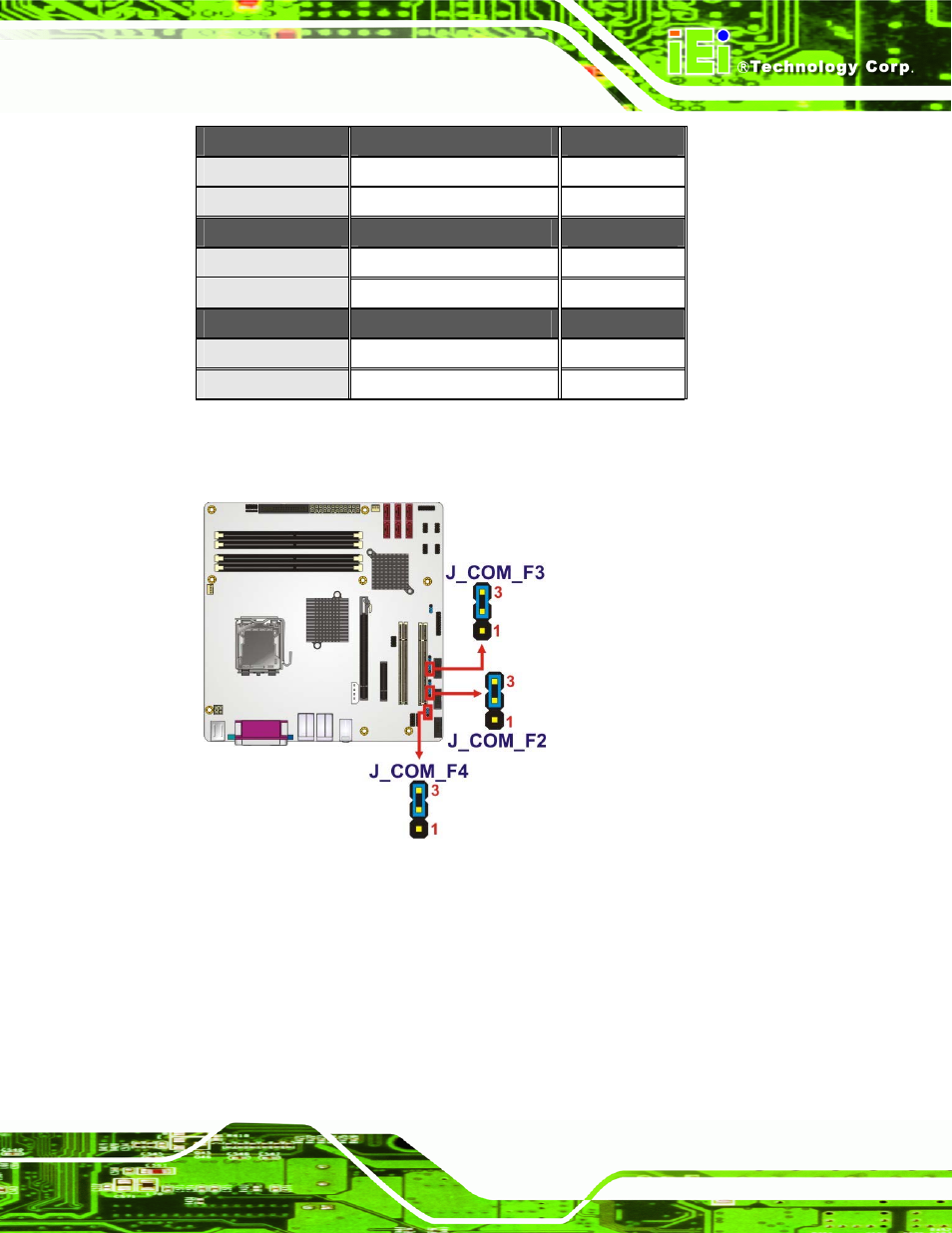

Figure 4-10: COM Port Pin 9 Setting Jumper Locations

4.5.3 COM Port Pin 9 Voltage Setting Jumpers

Jumper Label:

J_COM_V2, J_COM_V3 and J_COM_V4

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-3

Jumper Location:

See Figure 4-10
