1.1 Overview

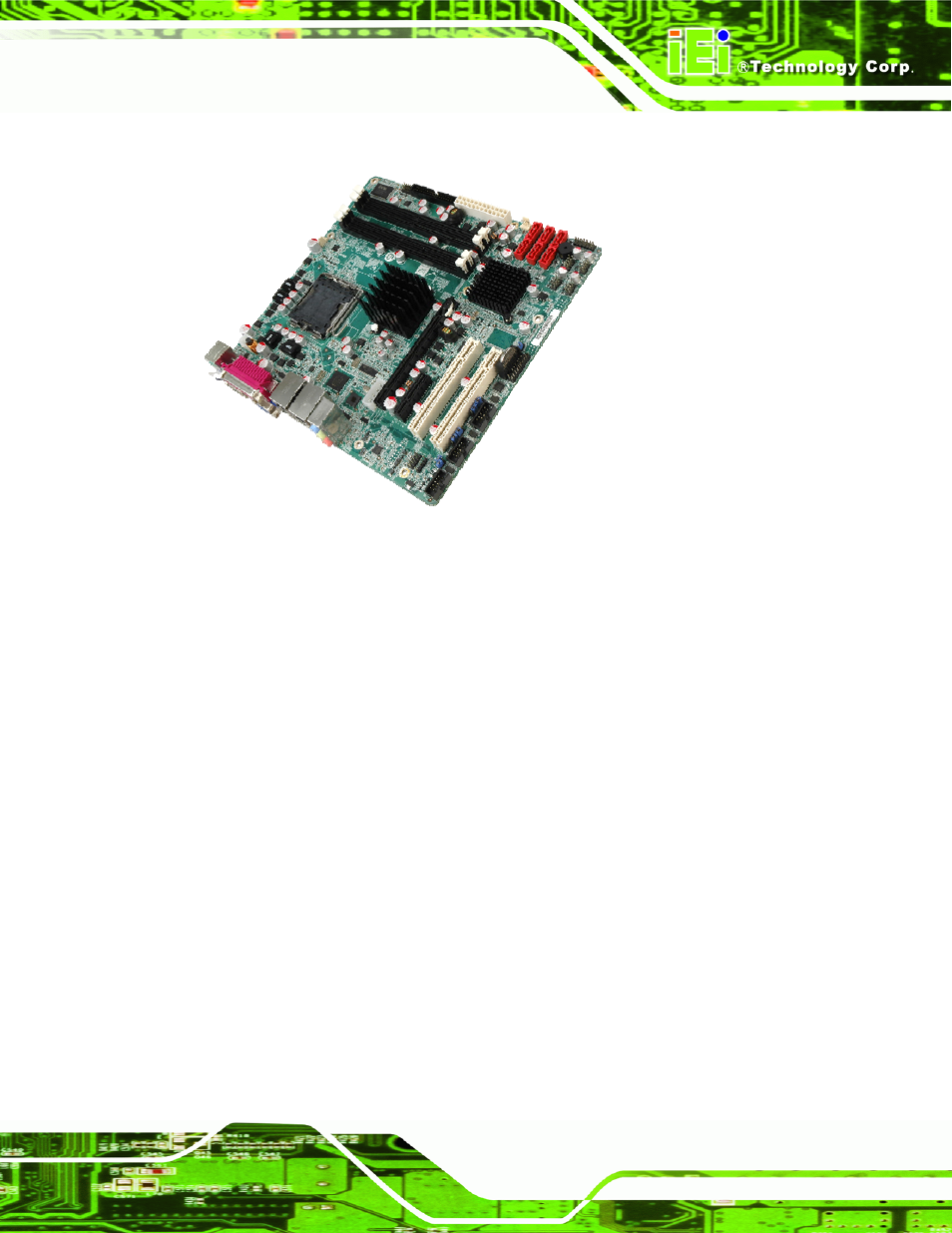

Figure 1-1: IMB-Q354 microATX Motherboard
The IMB-Q354 microATX form factor motherboard (Figure 1-1) is an LGA775 Intel®
Core™2 Quad, Intel® Core™2 Duo or Intel® Celeron® CPU processor platform. Both
45nm core (Wolfdale, Yorkfield) and 65nm core (Conroe) processors are supported.
Up to four 2.0 GB 667 MHz or 800 MHz un-buffered DDR2 SDRAM DIMM are supported
by the Intel® Q35 graphics memory controller hub (GMCH). The Intel® Q35 GMCH also
has a single PCI Express x16 (PCIe x16) expansion lane for a PCIe x16 graphics card.
The integrated Intel® ICH9DO I/O controller hub (ICH) supports six SATA 3Gb/s drives
with data transfer speeds of 3.0 Gbps with SATA RAID configuration support. Twelve USB
2.0 channels, one expansion PCIe x4 channel and two expansion PCI channels provide
flexible expansion options. Support for a (optional) trusted platform module (TPM)
provides additional system security during system boot-up.
