IMB-Q354 microATX Motherboard

Page 51

PIN DESCRIPTION

1 DATA

2 NC

3 GND

4 VCC5

5 CLK

6 NC

Table 3-19: PS/2 Connector Pinouts

3.3.3 LAN and Dual USB Combo Connectors

CN Label:

LAN1_USB01 and LAN2_USB23

CN Type:

RJ-45

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-20

The IMB-Q354 is equipped with two built-in RJ-45 Ethernet controllers. The controllers

can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN DESCRIPTION

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+-

3.

MDIA2-

7

MDIA0-

4.

MDIA1-

8

MDIA0+

Table 3-20: LAN Pinouts

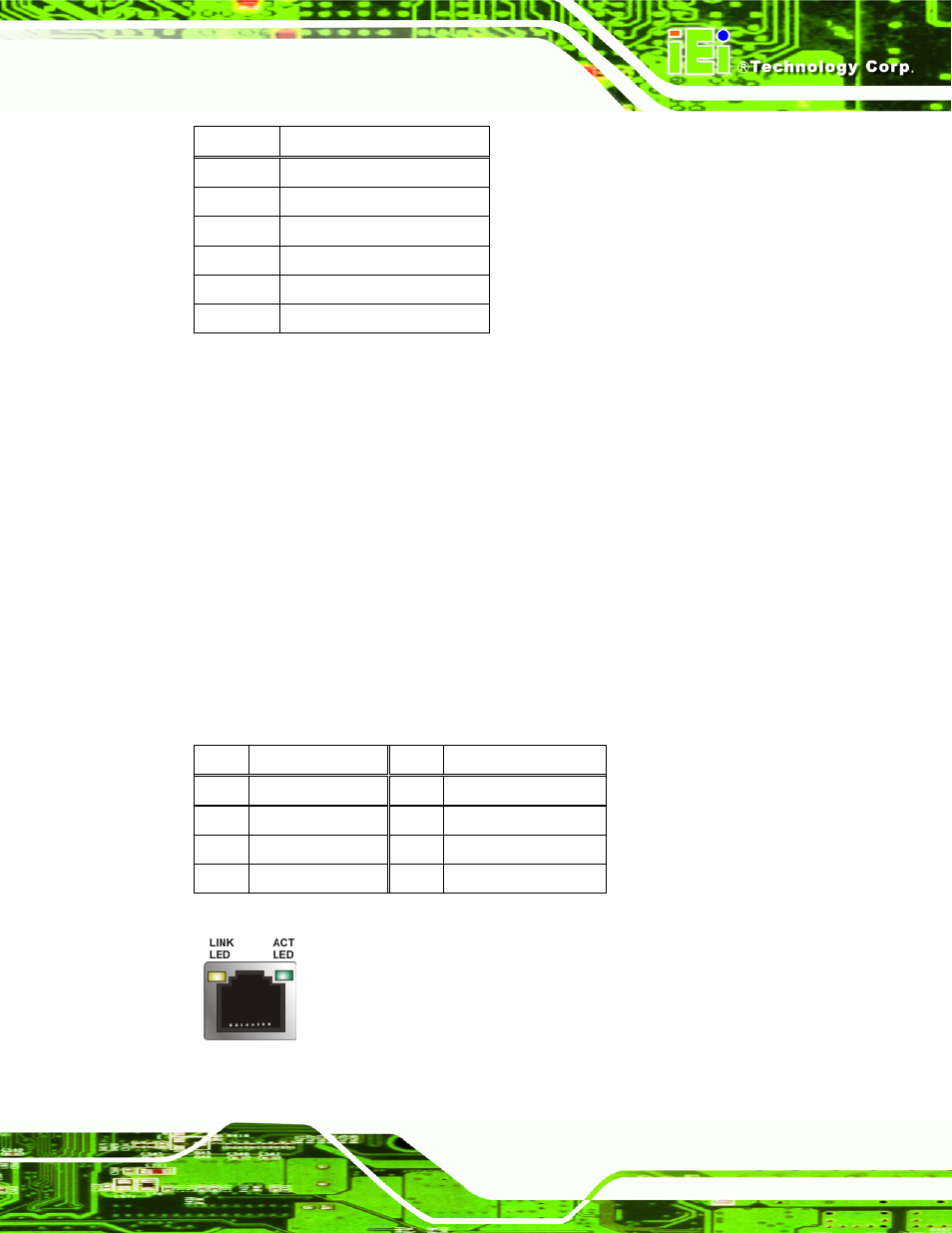

Figure 3-21: RJ-45 Ethernet Connector
