IMB-Q354 microATX Motherboard
Page 43
3.2.11 SATA Drive Connectors
CN Label: SATA1, SATA2, SATA3, SATA4, SATA5 and SATA6
CN Type: 7-pin SATA drive connectors (1x7)
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
The six SATA drive connectors are each connected to second generation SATA drives.
Second generation SATA drives transfer data at speeds as high as 3.0 Gbps. The SATA
drives can be configured in a RAID configuration.

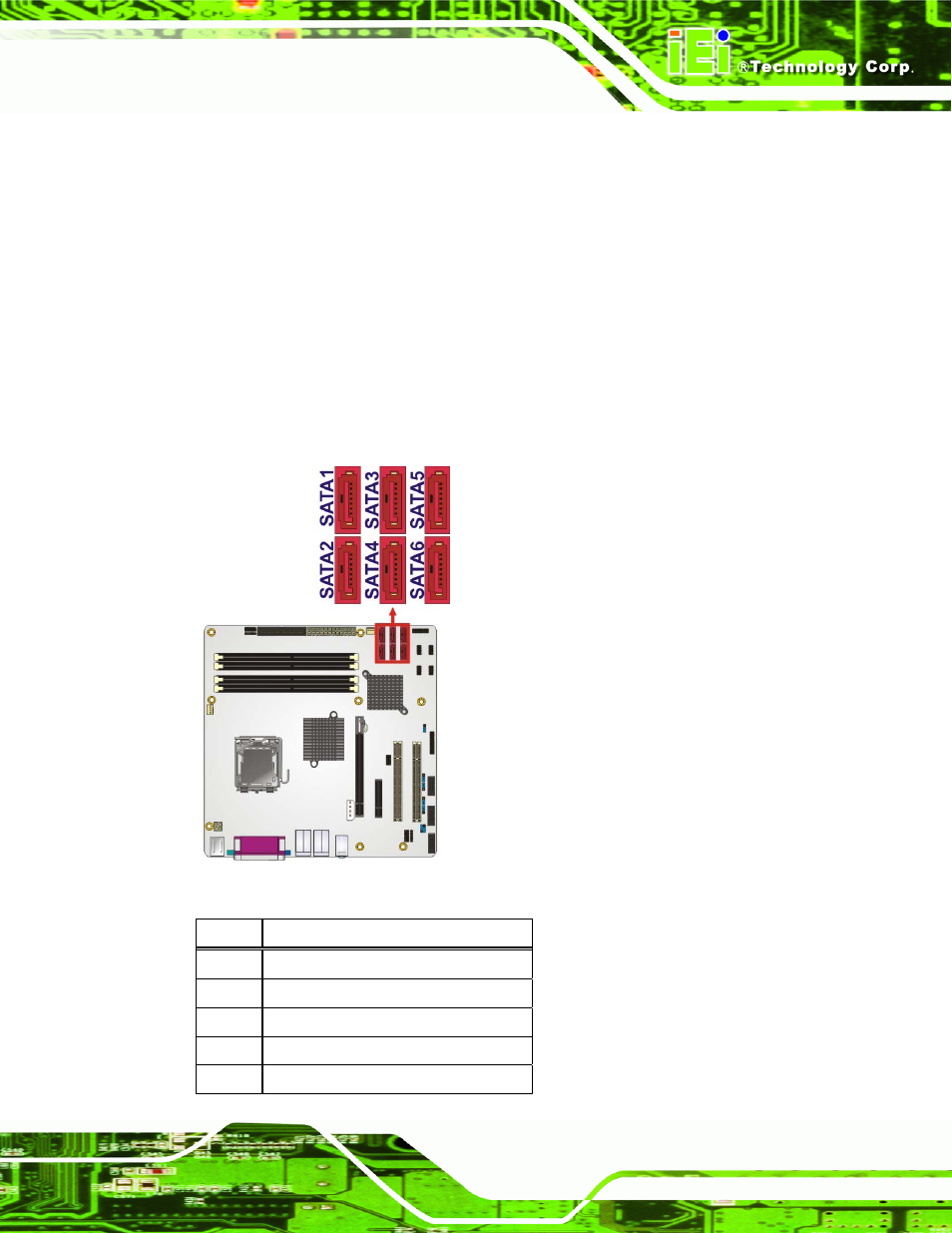

Figure 3-12: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
