IMB-Q354 microATX Motherboard

Page 177

Static TCP/IP address (the static TCP/IP address and Intel® AMI Host Name

must be different from those configured in the operating system)

Subnet

mask

Default Gateway address (optional)

Preferred Domain Naming Services (DNS) serer address (optional)

Alternate DNS server address (optional)

Domain name (optional)

Step 11:

Make other necessary settings in the Intel® MEBx depending on users’ need.

Step 12:

To exit the Intel® MEBx, return to the main menu and select Exit. (Figure 7-10)

Step 0:

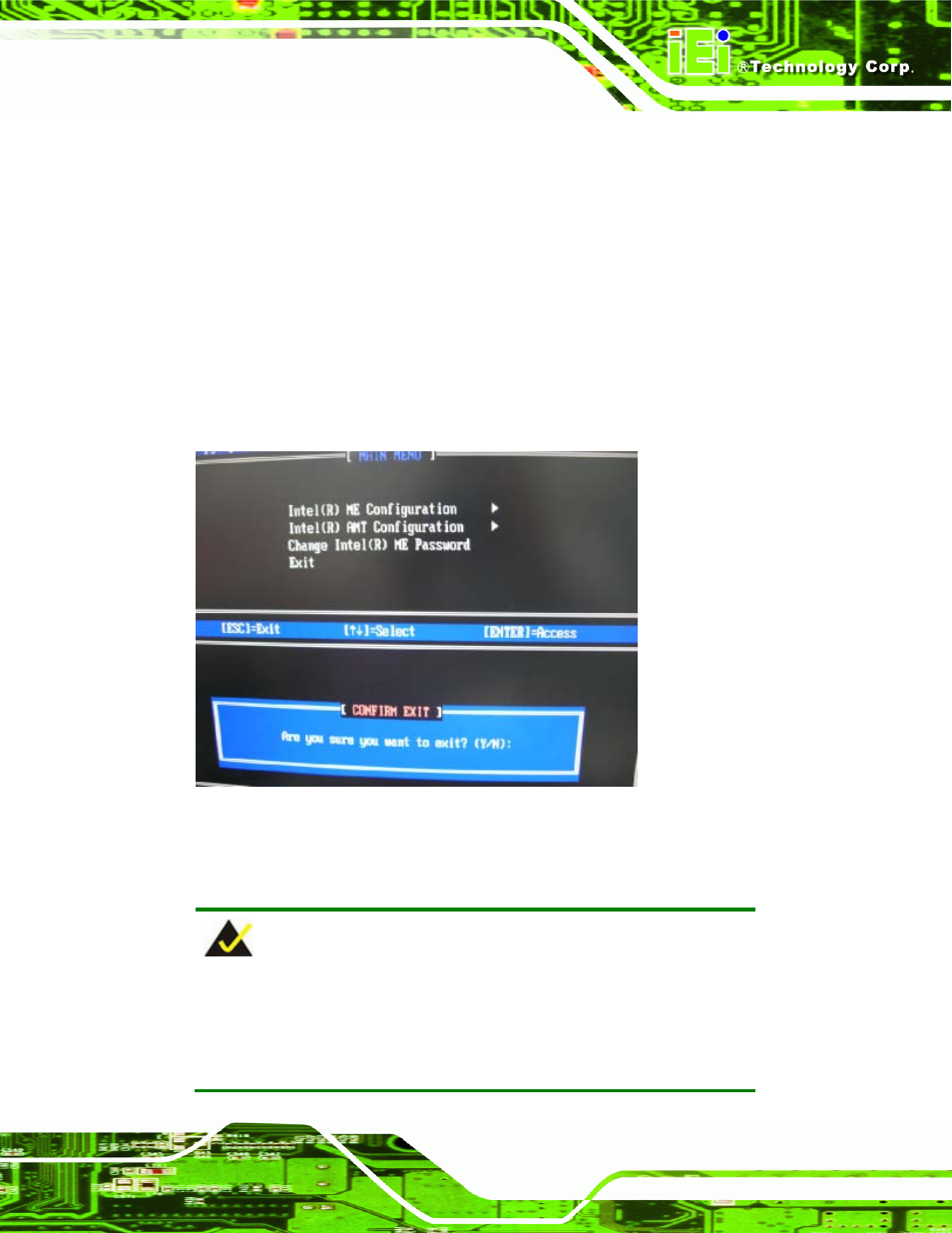

Figure 7-10: Exit

7.3 Using the Intel

AMT Web Interface

NOTE:

Prior to use the Intel® AMT web interface, please make sure the Intel®

AMT drivers are properly installed in the IMB-Q354 and the Intel® AMT

enabled confirmation dialog window displays after boot-up.
