IMB-Q354 microATX Motherboard

Page 29

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the

peripheral interface connectors seen in Section 3.1.1.

3.1.1 IMB-Q354 Layout

Figure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

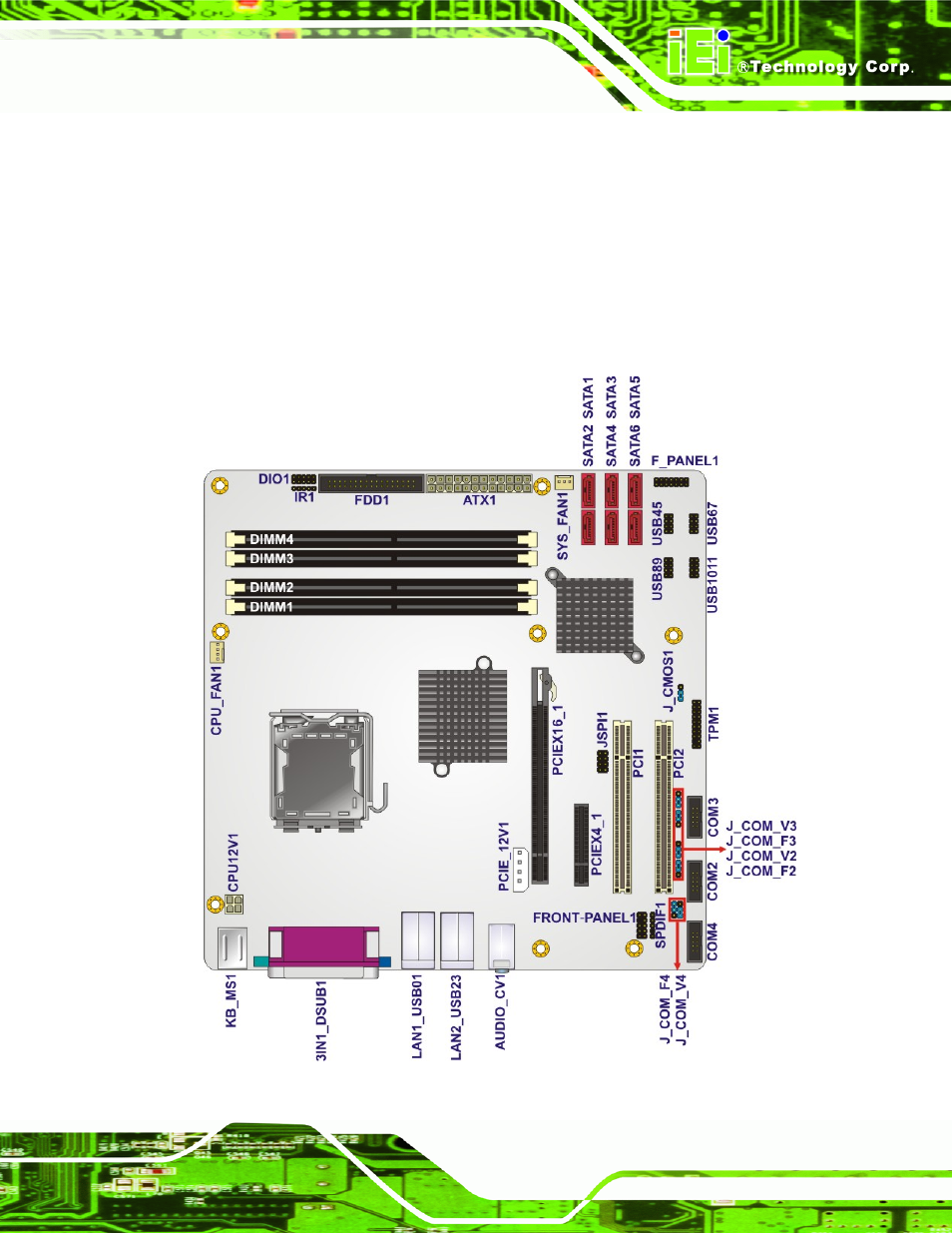

Figure 3-1: Connector and Jumper Locations
