Figure 6-51: matrix storage manager setup screen, Figure 6-52: matrix storage manager welcome screen – IEI Integration IMB-Q354 v1.10 User Manual
Page 163
IMB-Q354 microATX Motherboard
Page 163
Step 6:
Figure 6-51 shows the Matrix Storage Manager software configuring the
installation process.

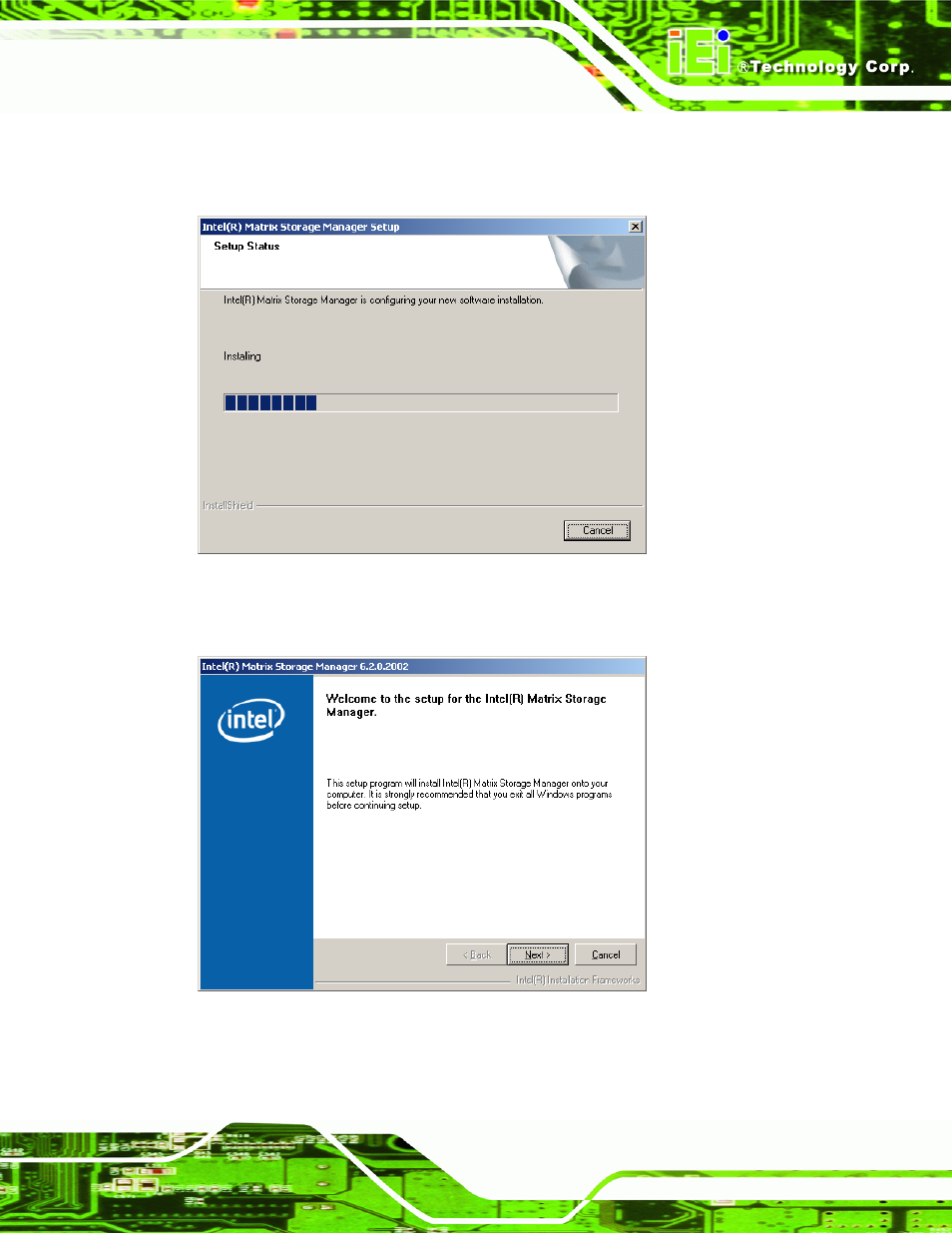

Figure 6-51: Matrix Storage Manager Setup Screen
Step 7:
Figure 6-52 shows the Matrix Storage Manager welcome screen.
Figure 6-52: Matrix Storage Manager Welcome Screen
Step 8:
Click N
EXT
and a warning appears (Figure 6-53). Read the warning carefully
and decide whether or not to continue the installation process.
