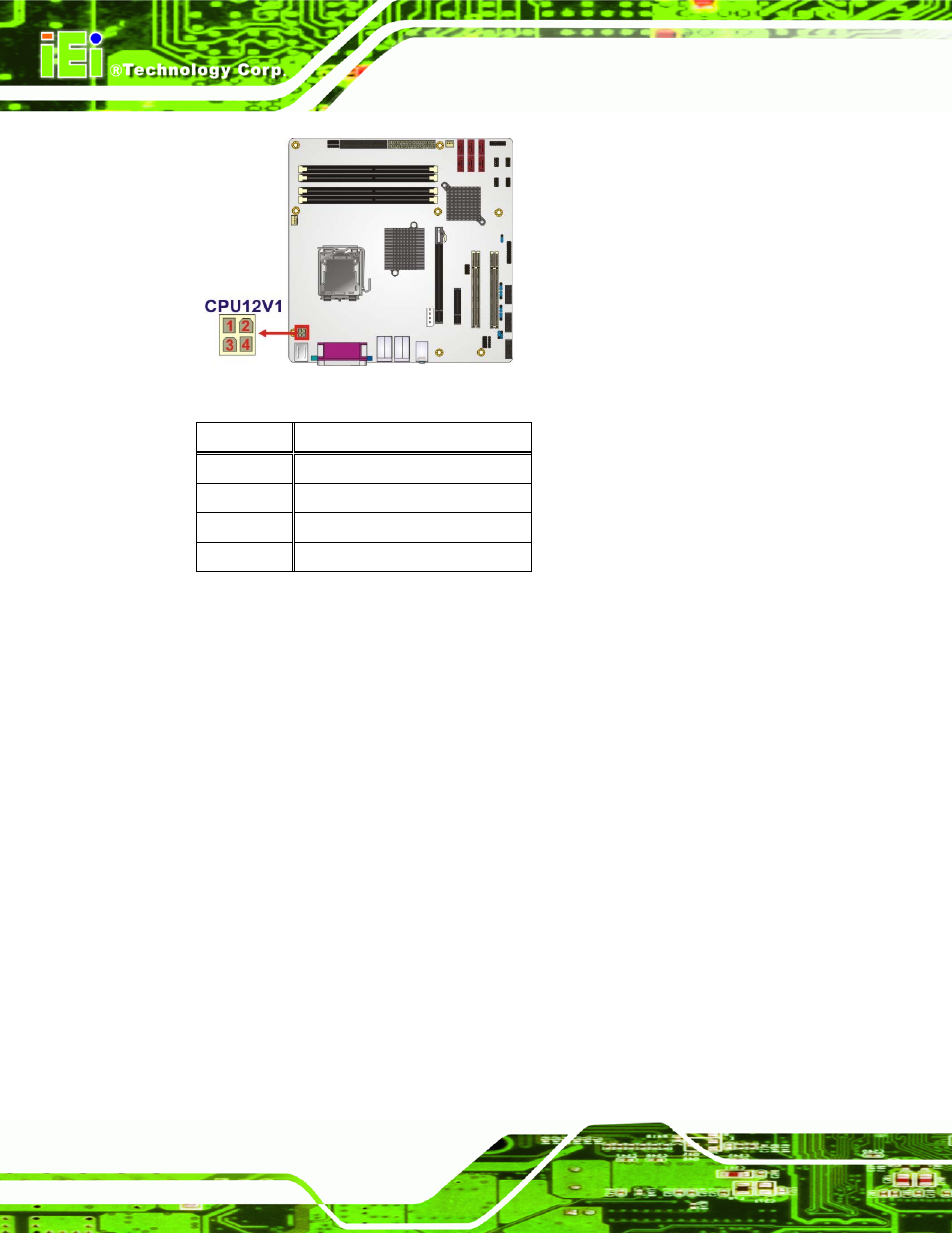

Figure 3-3: CPU Power Connector Location

PIN NO.

DESCRIPTION

1 GND

2 GND

3 +12V

4 +12V

Table 3-4: CPU Power Connector Pinouts

3.2.3 Digital Input/Output (DIO) Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)

CN Location:

See Figure 3-4

CN Pinouts:

See Table 3-5

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable. To see details on how to program the DIO chip,

please refer to Appendix C.
