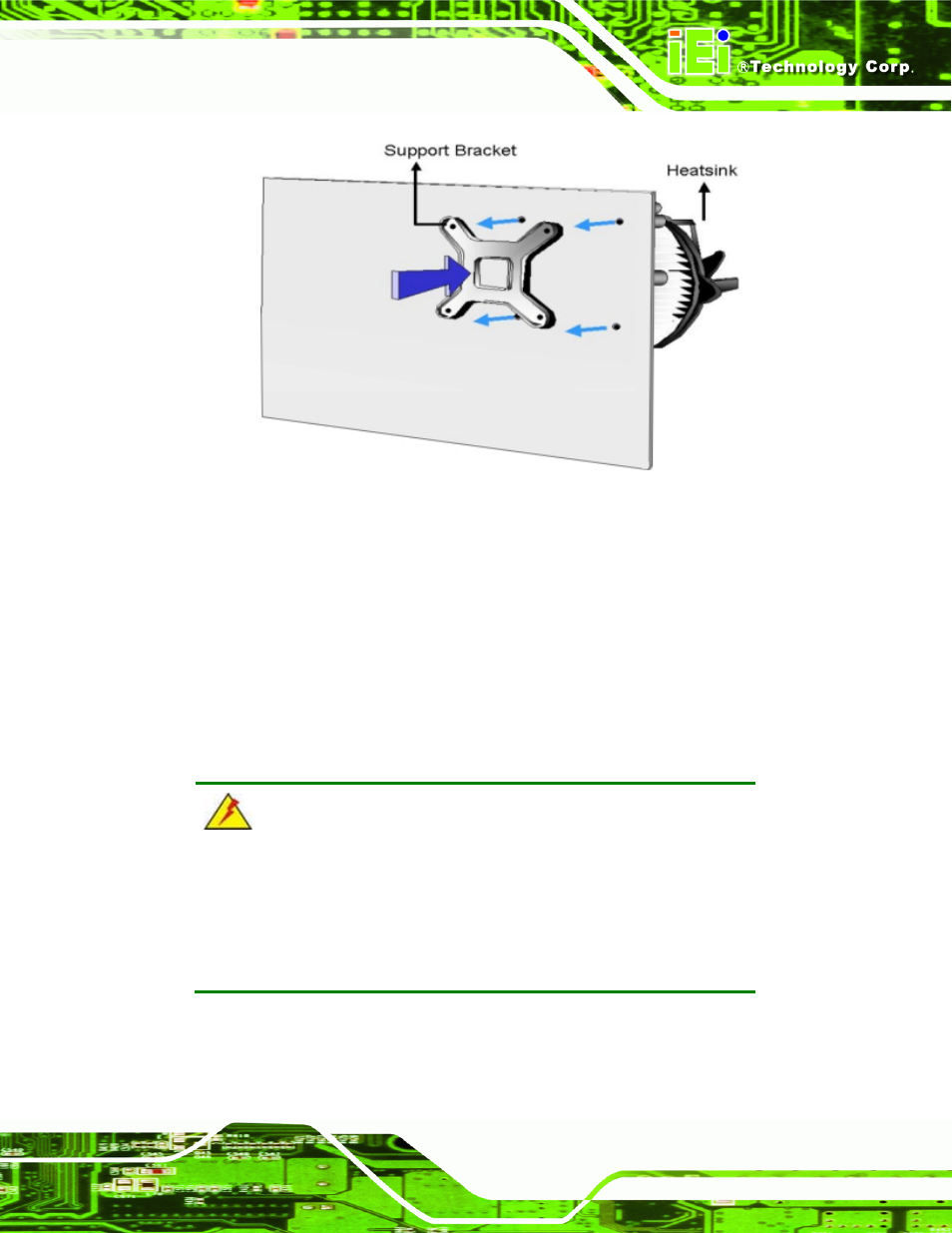

Figure 4-6: Securing the Heat sink to the PCB Board
Step 5: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each
nut a few turns at a time and do not over-tighten the screws.
Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the IMB-Q354. Carefully route the cable and avoid heat generating chips and
fan blades. Step 0:
4.4.3 DIMM Installation
WARNING:
Using incorrectly specified DIMM may cause permanently damage the
IMB-Q354. Please make sure the purchased DIMM complies with the
memory specifications of the IMB-Q354. DIMM specifications
compliant with the IMB-Q354 are listed in Chapter 1.
