Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the KINO-AH612. See Figure 4-15.

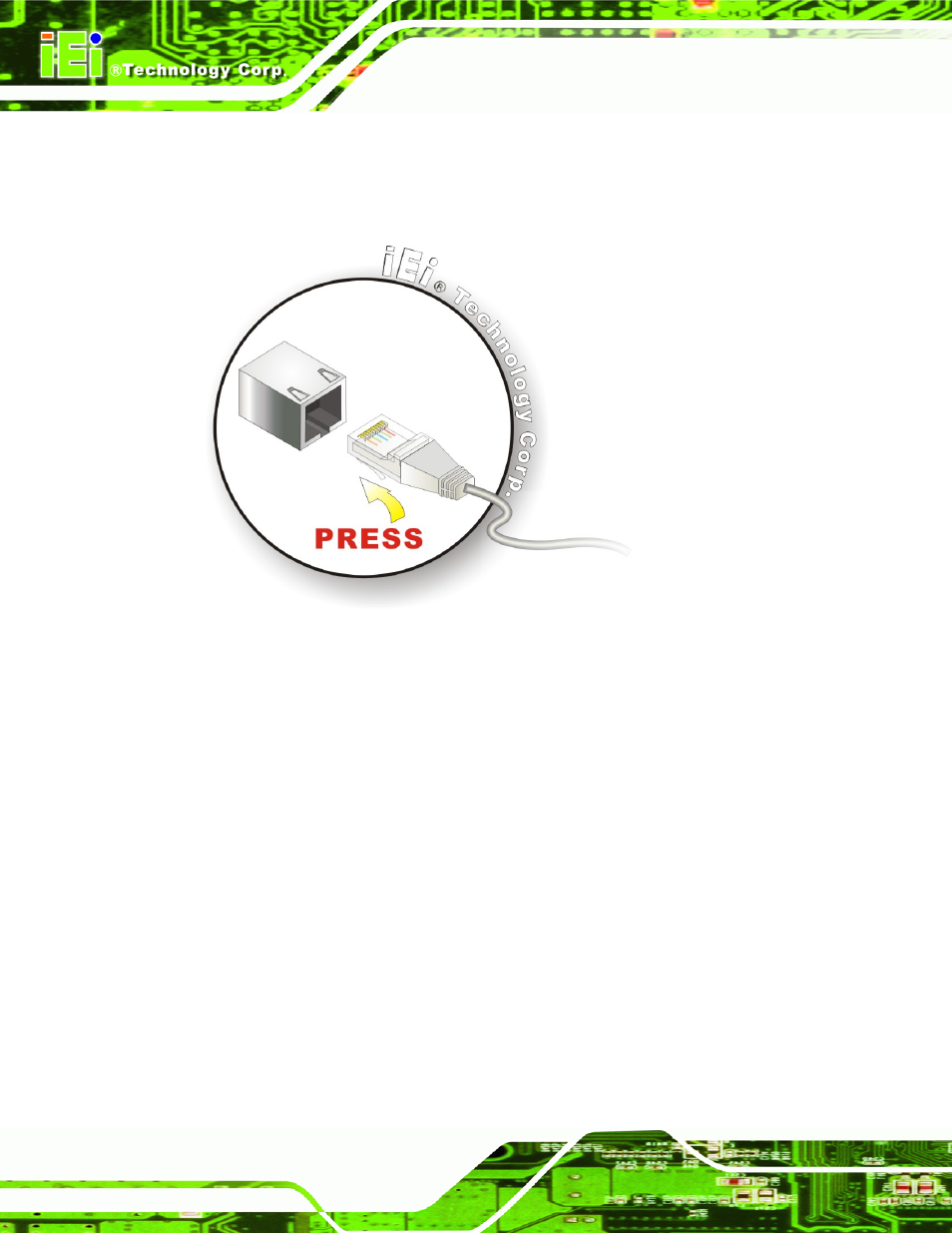

Figure 4-15: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

4.6.4 USB Connection

The external USB Series "A" receptacle connectors provide easier and quicker access to

external USB devices. Follow the steps below to connect USB devices to the

KINO-AH612.

Step 1:

Locate the USB Series "A" receptacle connectors. The location of the USB

Series "A" receptacle connectors are shown in Chapter 3.

Step 2:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See
