PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1 GND

2 +12V

3 FANIO1

4 PWM

Table 3-8: CPU Fan Connector Pinouts

3.2.8 Fan Connector (System)

CN Label:

SYS_FAN1

CN Type:

3-pin wafer

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-9

The fan connector connects to a system cooling fan.

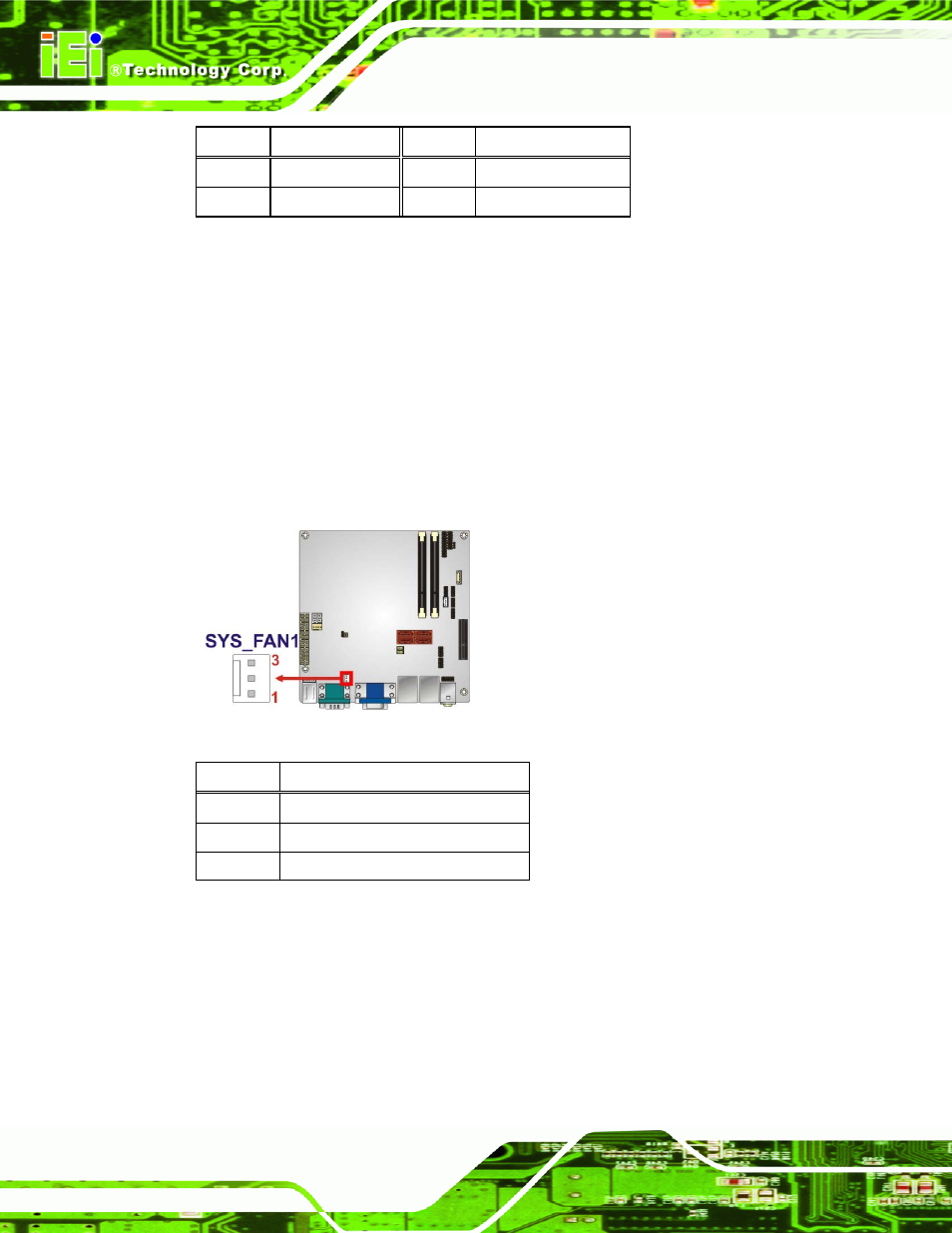

Figure 3-9: System Fan Connector Location

PIN NO.

DESCRIPTION

1 FANIO

2 +12V

(PWM)

3 GND

Table 3-9: System Fan Connector Pinouts

3.2.9 Front Panel Connector

CN Label:

F_PANEL

CN Type:

14-pin header

CN Location:

See Figure 3-10
