KINO-AH612
Page 34
CN Location: See Figure 3-21
CN Pinouts: See Figure 3-23 and Table 3-20
The LAN connector connects to a local network.

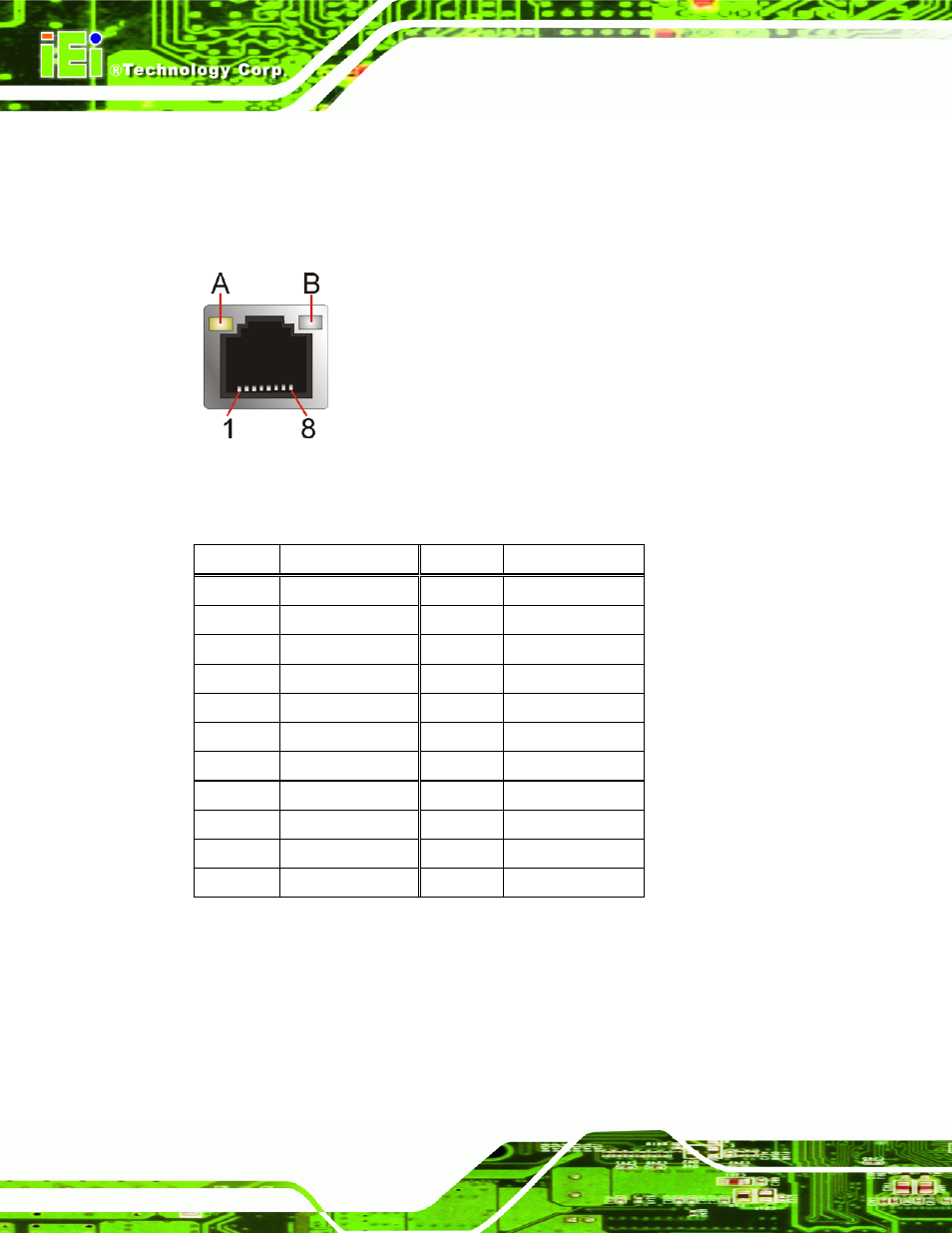

Figure 3-23: LAN Connector
The USB connector can be connected to a USB device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
P1 +V3.3A_LAN1 P2 LAN1_MDIP0
P3 LAN1_MDIN0 P4 LAN1_MDIP1
P5 LAN1_MDIN1 P6 LAN1_MDIP2
P7 LAN1_MDN2 P8 LAN1_MDIP3
P9 LAN1_MDIN3 P10 GND
P11 LAN1_LINK100 P12 LAN1_LINK1000
P13 LAN1_ACT-1 P14 +V3.3A_LAN1
U1 +USB_PWR1 U2 USB20_C_N0
U3 USB20_C_P0 U4 GND
U5 +USB_PWR1 U6 USB20_C_N1
U7 USB20_C_P1 U8 GND
Table 3-20: LAN and USB Connector Pinouts
3.3.3 Keyboard and PS/2 Mouse Connector
CN Label: KB_MS2
CN Type: Dual PS/2 port
CN Location: See Figure 3-21
