KINO-AH612

Page 48

Setting Description

Short 1-2

ATX Mode

Default

Short 2-3

AT Mode

Table 4-2: AT/ATX Mode Select Jumper Settings

The location of the AT/ATX mode select jumper is shown in Figure 4-9 below.

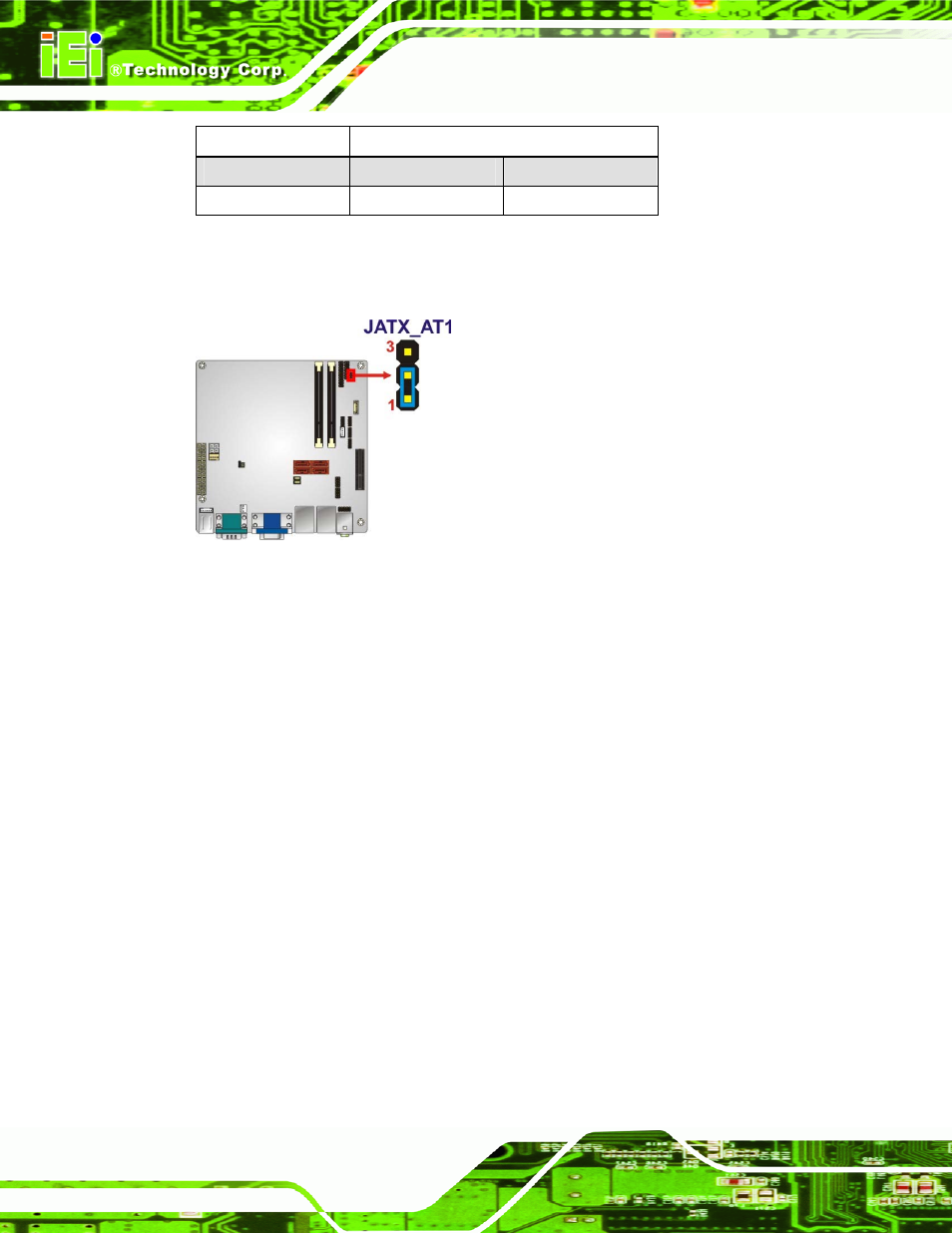

Figure 4-9: AT/ATX Mode Select Jumper Location

4.4.2 Clear CMOS Jumper

Jumper Label:

J_CMOS1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-3

Jumper Location:

See Figure 4-10

If the KINO-AH612 fails to boot due to improper BIOS settings, the clear CMOS jumper

clears the CMOS data and resets the system BIOS information. To do this, use the jumper

cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1

and 2.

If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault

may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the

following:

　 Enter the correct CMOS setting

　 Load Optimal Defaults
