PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 SPI_VCC 2 SPI_CS#
3 SPI_MISO 4 SPI_CLK
5 SPI_MOSI 6 GND
Table 3-6: BIOS Update Connector Pinouts
3.2.5 DDR3 SO-DIMM Slots
CN Label: DIMM1, DIMM2
CN Type: DDR3 SO-DIMM slot
CN Location: See Figure 3-6
The DDR3 DIMM slots are for DDR3 SO-DIMM memory modules.

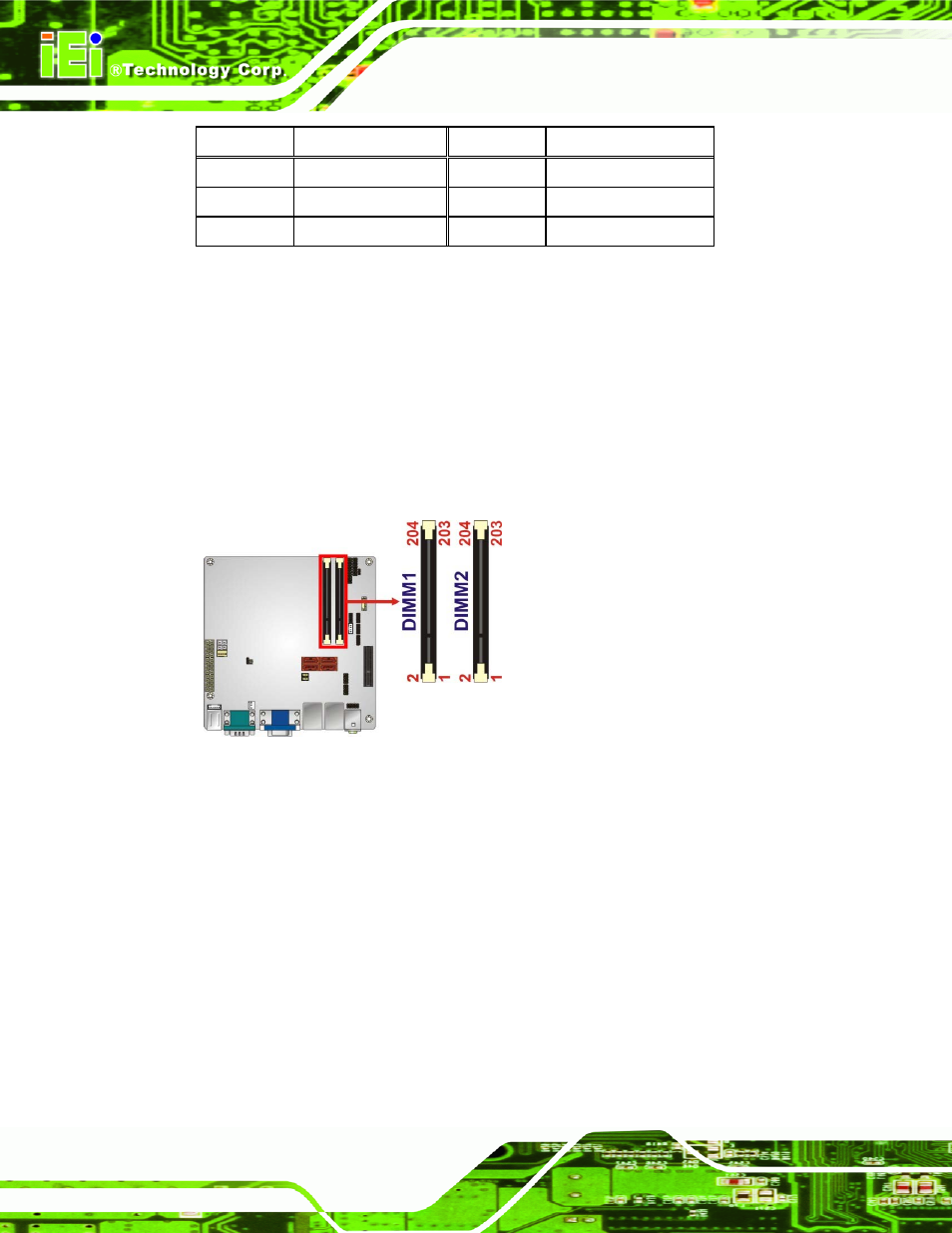

Figure 3-6: DDR3 SO-DIMM Slot Locations
3.2.6 Digital I/O Connector
CN Label: DIO1
CN Type: 10-pin header (2x5)
CN Location: See Figure 3-7
CN Pinouts: See Table 3-7
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
