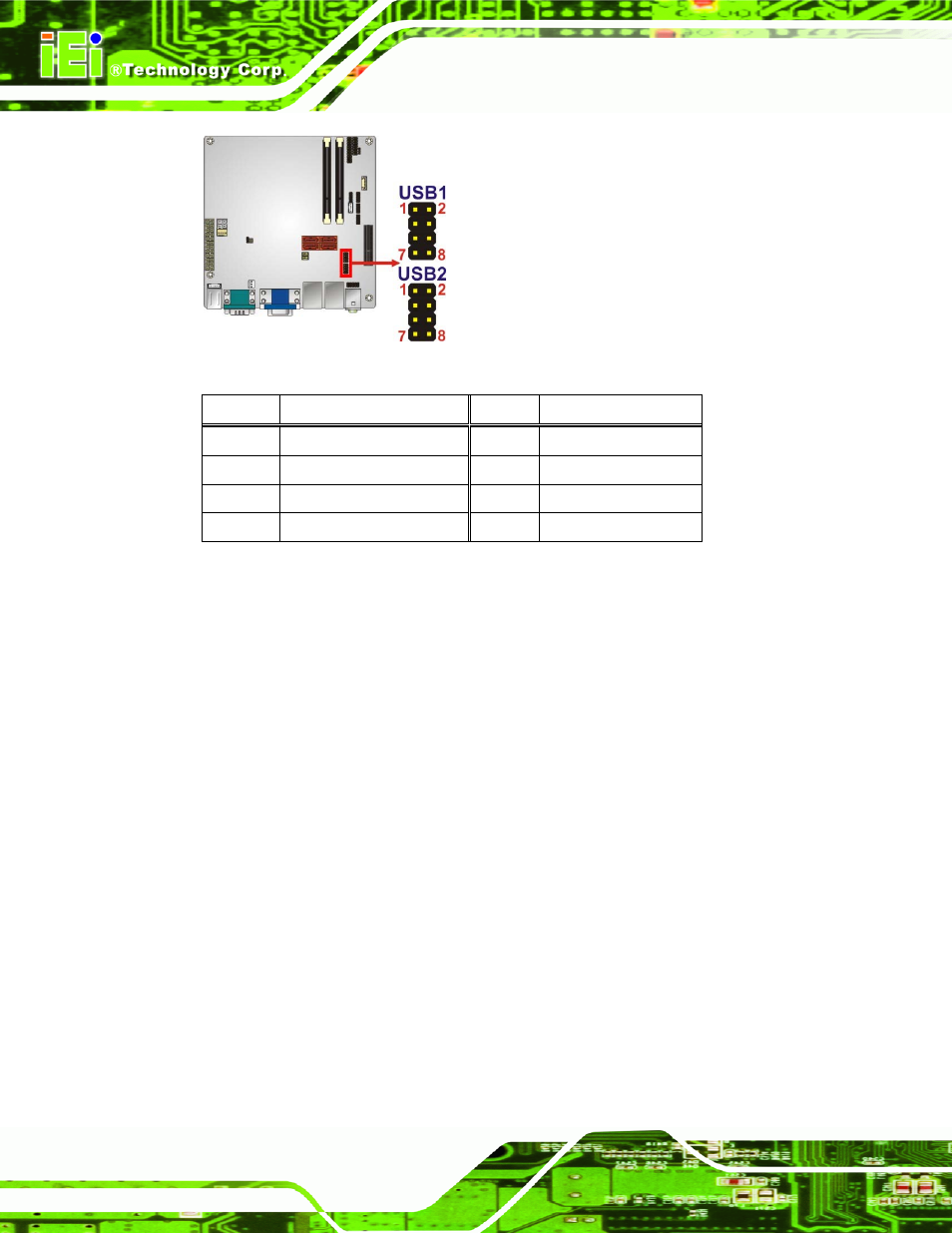

Figure 3-20: USB Connector Locations

PIN NO.

DESCRIPTION

PIN NO. DESCRIPTION

1 VCC

2

GND

3 DATA-

4

DATA+

5 DATA+

6

DATA-

7 GND

8

VCC

Table 3-19: USB Connector Pinouts

3.3 External Peripheral Interface Connector Panel

Figure 3-21 shows the KINO-AH612 external peripheral interface connector (EPIC) panel.

The EPIC panel consists of the following:

ƒ 2 x Audio jacks

ƒ 1 x VGA connector

ƒ 1 x DVI connector

ƒ 2 x Ethernet connectors

ƒ 4 x USB connectors

ƒ 2 x PS/2 connectors

ƒ 2 x DB-9 serial port connectors
