KINO-AH612
Page 26

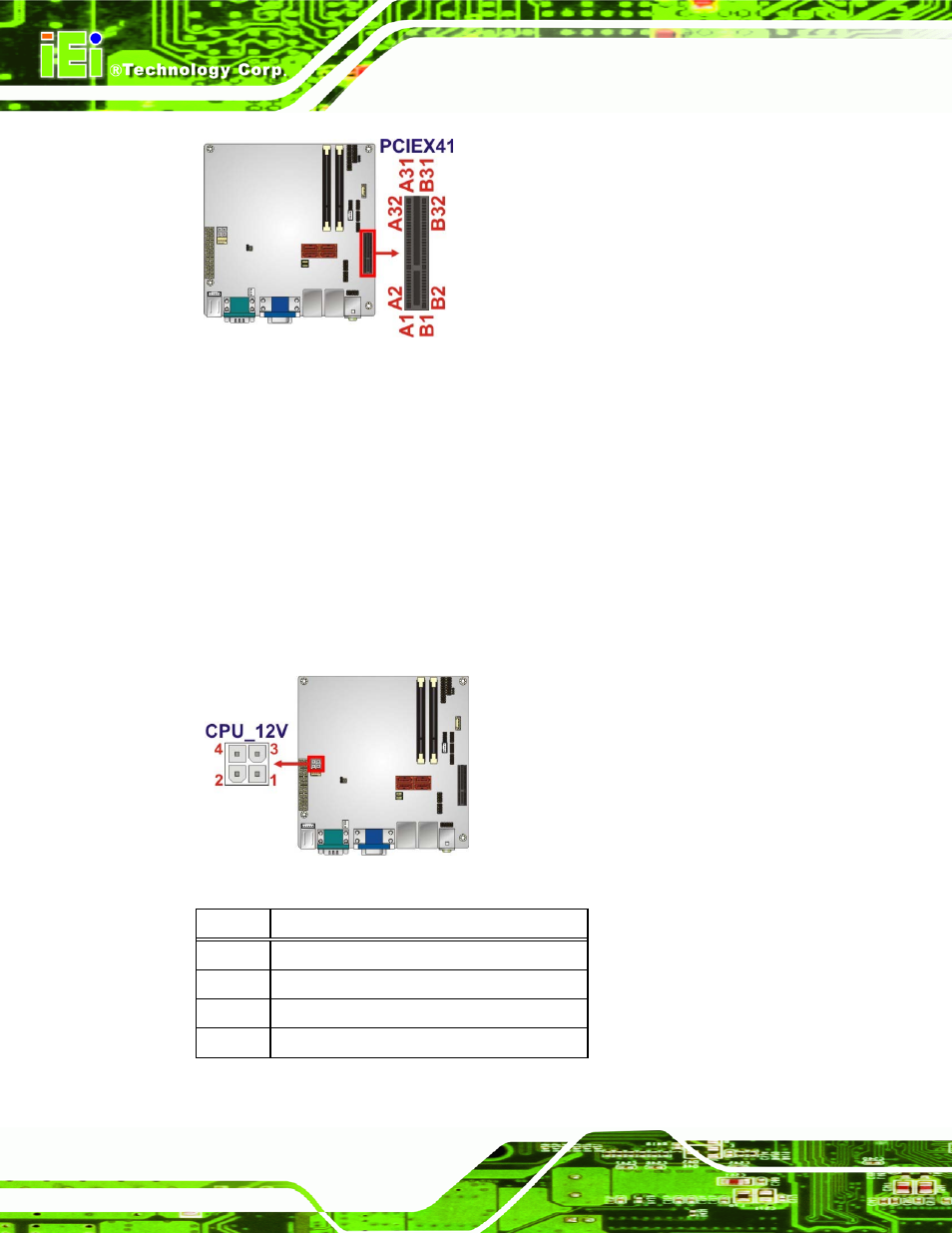

Figure 3-13: PCIe x4 Slot Location
3.2.13 Power Connector
CN Label: CPU_12V
CN Type: 4-pin connector
CN Location: See Figure 3-14
CN Pinouts: See Table 3-13
The power connector provides 12 V power to the motherboard.
Figure 3-14: Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 3-13: Power Connector Pinouts
