KINO-AH612
Page 21

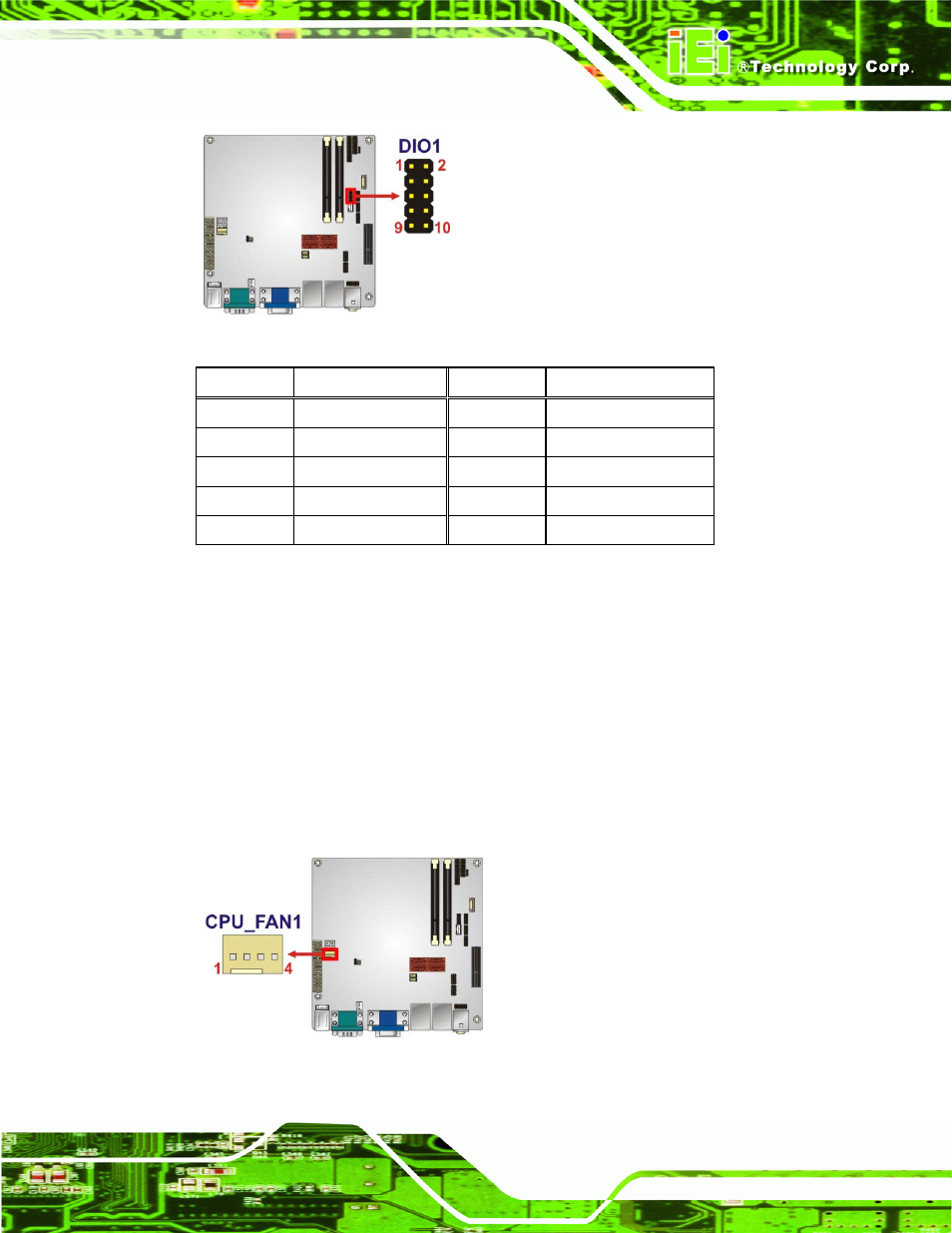

Figure 3-7: Digital I/O Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 +5V
3 DOUT3 4 DOUT2
5 DOUT1 6 DOUT0
7 DIN3 8 DIN2
9 DIN1 10 DIN0
Table 3-7: Digital I/O Connector Pinouts
3.2.7 Fan Connector (CPU)
CN Label: CPU_FAN1
CN Type: 4-pin wafer
CN Location: See Figure 3-8
CN Pinouts: See Table 3-8
The fan connector attaches to a CPU cooling fan.
Figure 3-8: CPU Fan Connector Location
