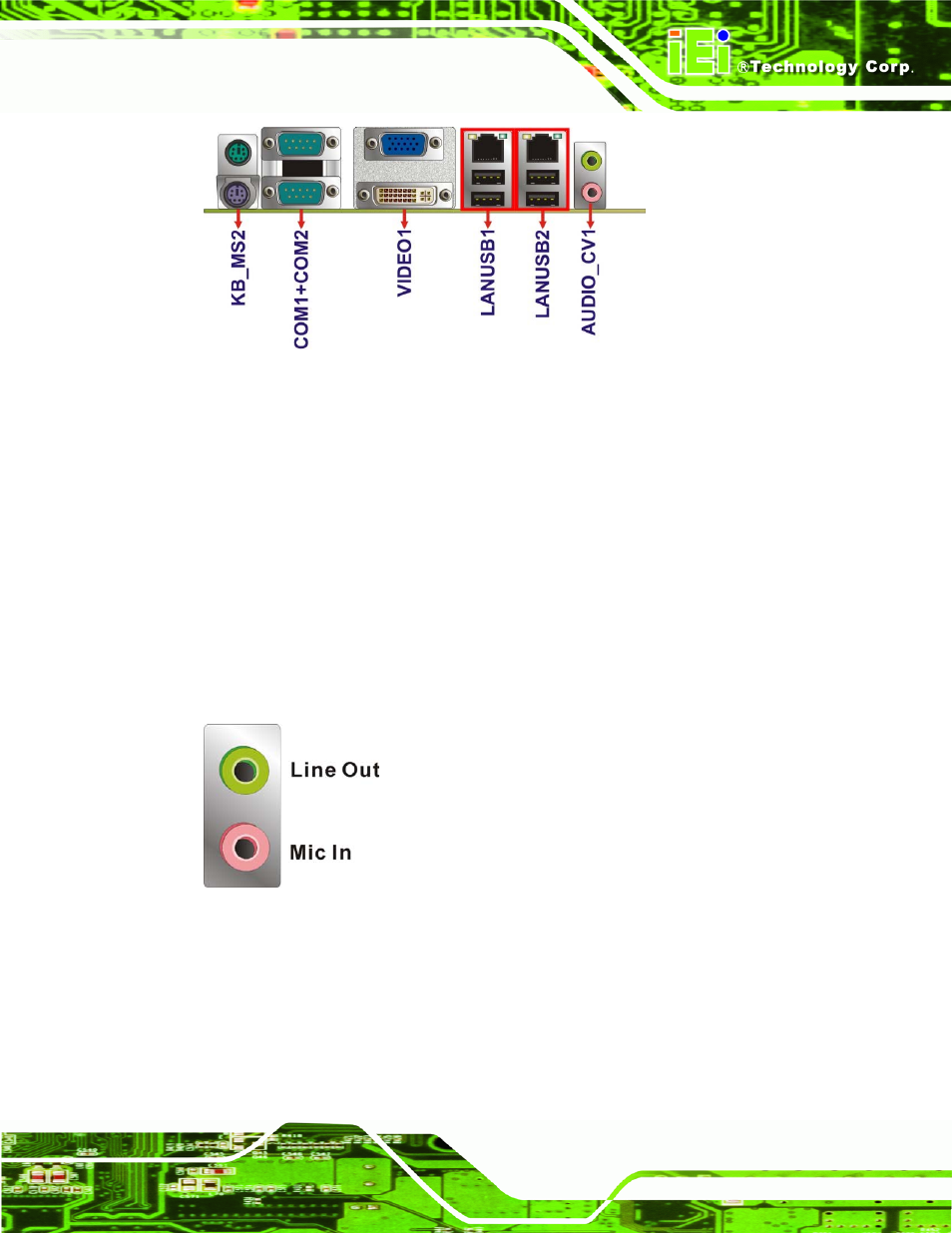

Figure 3-21: KINO-AH612 External Peripheral Interface Connector

3.3.1 Audio Connector

CN Label:

AUDIO_CV1

CN Type:

Audio jack

CN Location:

See Figure 3-21

The audio jacks connect to external audio devices.

ƒ Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

ƒ Microphone (Pink): Connects to a microphone.

Figure 3-22: Audio Connector

3.3.2 Ethernet and USB Connector

CN Label:

LANUSB1, LANUSB2

CN Type:

RJ-45 , USB port
