KINO-AH612
Page 2
1.1 Introduction

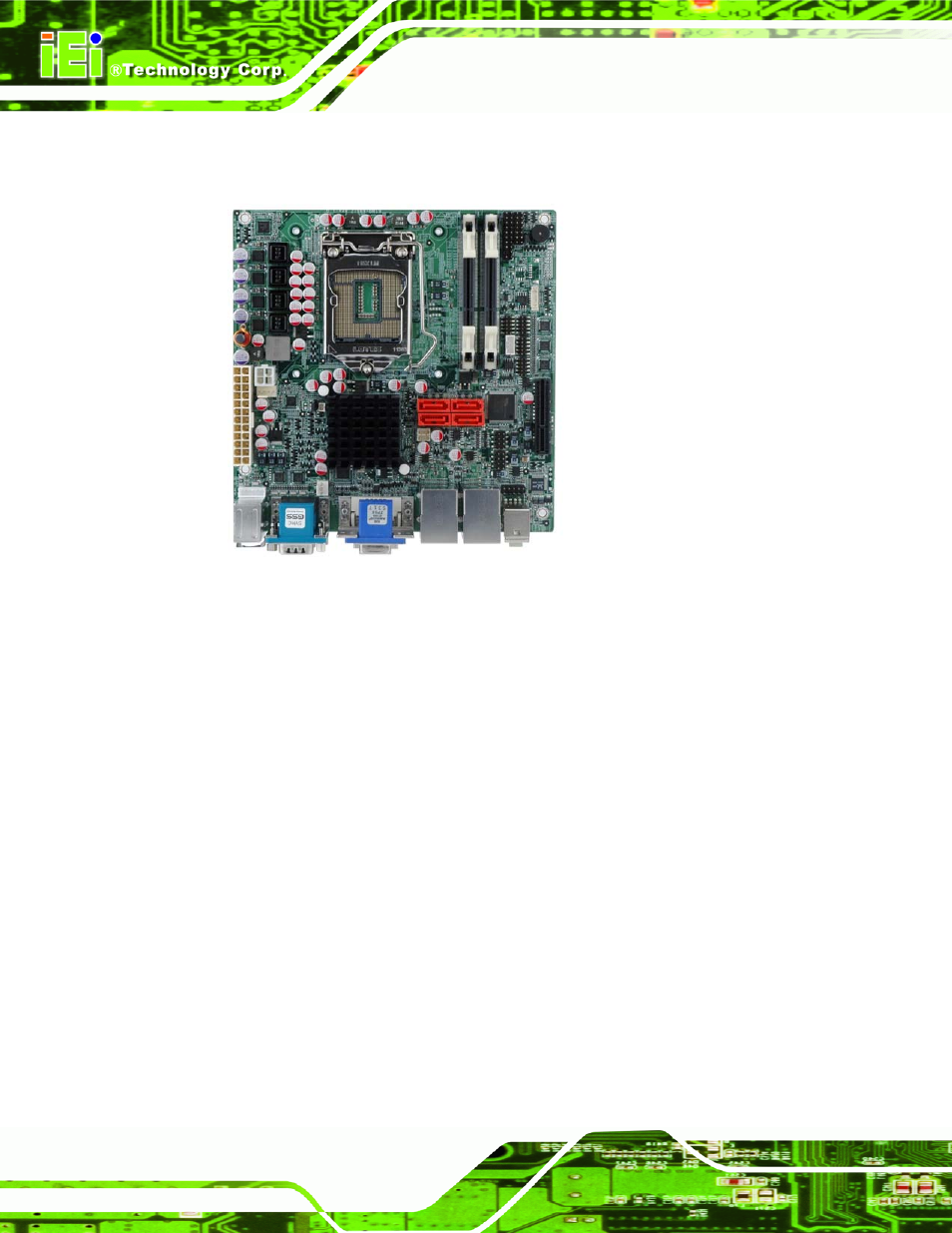

Figure 1-1: KINO-AH612
The KINO-AH612 is a Mini-ITX motherboard. It accepts an LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron® processor and supports two 204-pin 1066/1333 MHz
dual-channel DDR3 SO-DIMM modules up to 16 GB.
The integrated Intel® H61 System Chipset supports two GbE LAN ports through dual
Realtek RTL8111E PCIe GbE controllers (with ASF 2.0 support). The KINO-AH612 also
supports four SATA 3Gb/s drives.
The KINO-AH612 includes a VGA and DVI-D combination port. Expansion and I/O include
one PCI x4 slot, four USB 2.0 ports on the rear panel and four USB 2.0 ports by pin
header. Serial device connectivity is provided by two external RS-232 connectors.
