KINO-AH612
Page 47
4.4 Jumper Settings

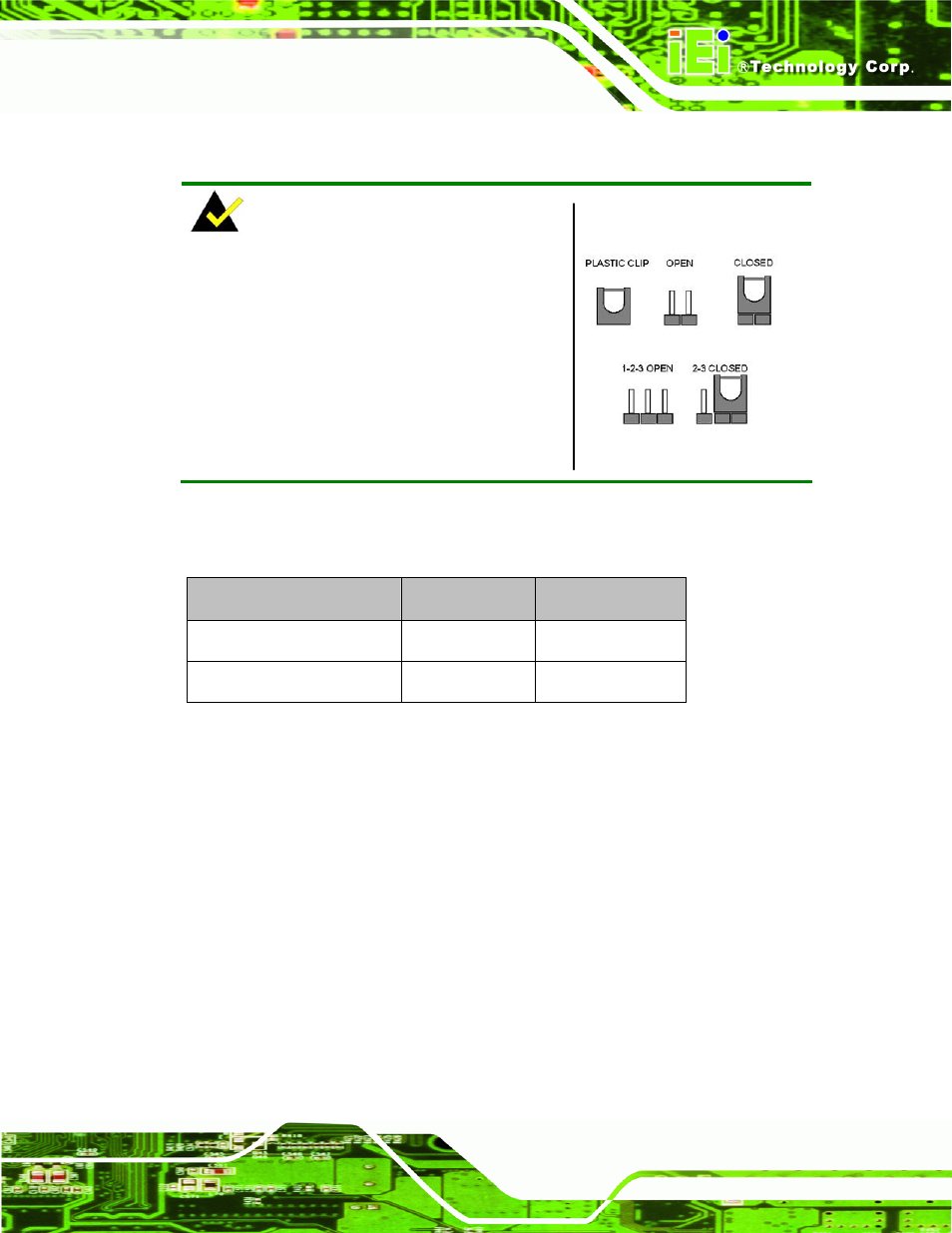

NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three metal
pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect
them. To CLOSE/SHORT a jumper means
connecting the pins of the jumper with the plastic
clip and to OPEN a jumper means removing the
plastic clip from a jumper.
Figure 4-8: Jumper Locations
Before the KINO-AH612 is installed in the system, the jumpers must be set in accordance
with the desired configuration. The jumpers on the KINO-AH612 are listed in Table 4-1.
Description Type Label
AT/ATX mode select 3-pin header JATX_AT1
Clear CMOS 3-pin header J_CMOS1
Table 4-1: Jumpers
4.4.1 AT/ATX Mode Select Jumper
Jumper Label: JATX_AT1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-2
Jumper Location: See Figure 4-9
The AT/ATX mode select jumper specifies the systems power mode as AT or ATX.
AT/ATX mode select jumper settings are shown in Table 4-2.
