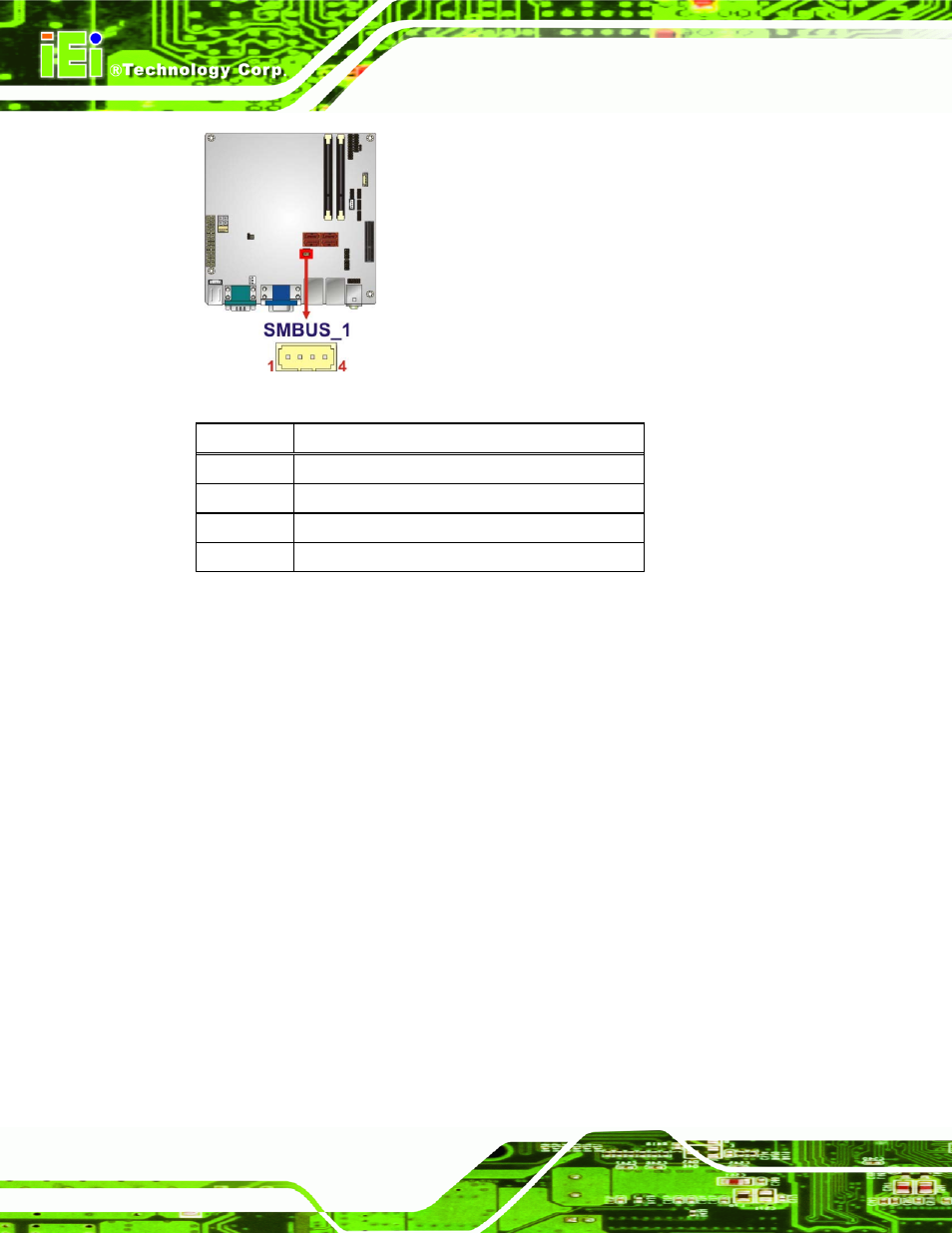

Figure 3-18: SMBus Connector Location

Pin Description

1 +5V_DUAL

2 SMBCLK

3 SMBDATA

4 GND

Table 3-17: SMBus Connector Pinouts

3.2.18 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-18

The Trusted Platform Module (TPM) connector secures the system on bootup.
