KINO-AH612
Page 31

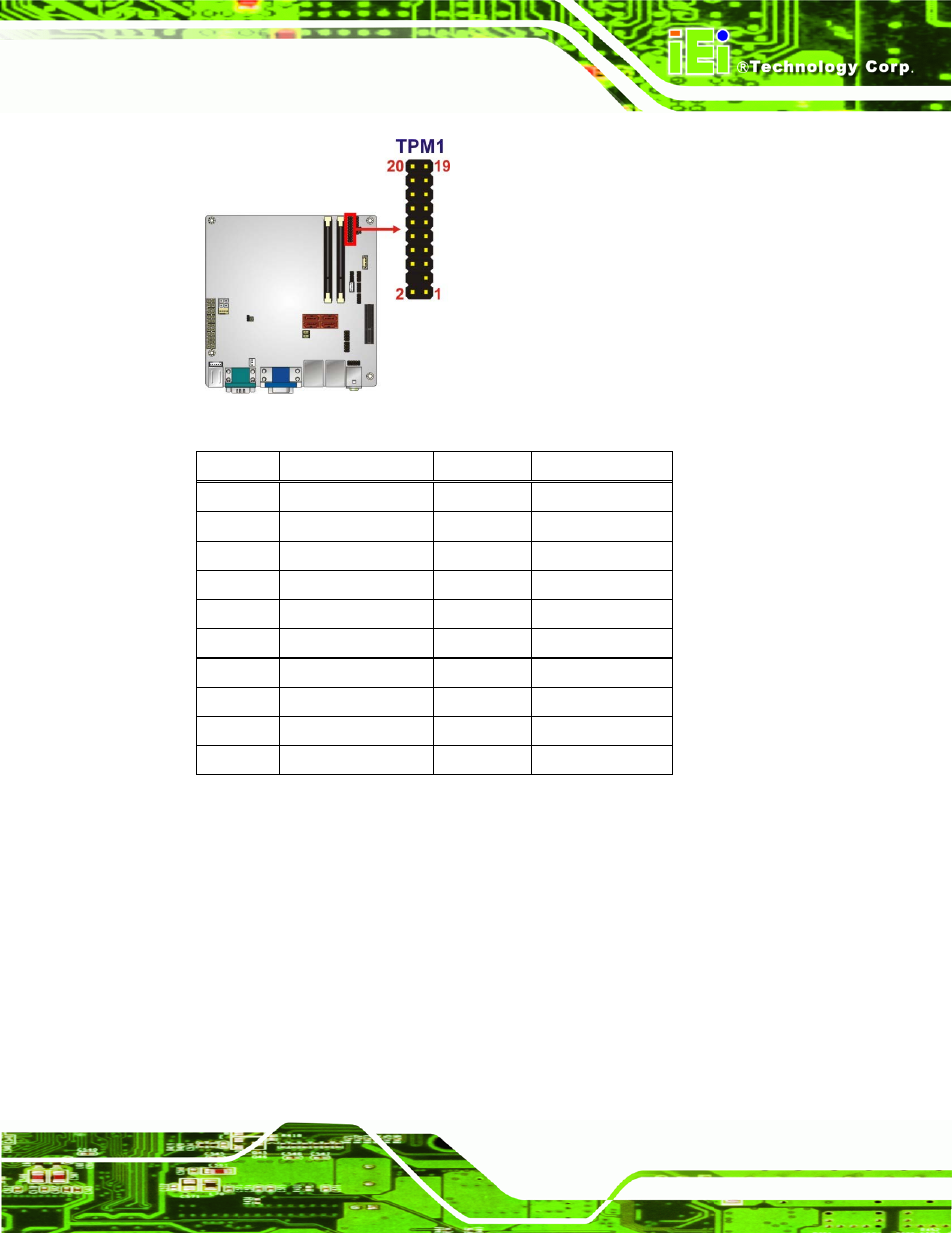

Figure 3-19: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCLK 2 GND2
3 LERAME# 4 KEY
5 LRESRT# 6 +5V
7 LAD3 8 LAD2
9 +3V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-18: TPM Connector Pinouts
3.2.19 USB Connector
CN Label: USB1, USB2
CN Type: 8-pin header (2x4)
CN Location: See Figure 3-20
CN Pinouts: See Table 3-19
The USB connectors connect to USB devices. Each pin header provides two USB ports.
