KINO-AH612

Page 28

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-15

This connector provides RS-232 communications.

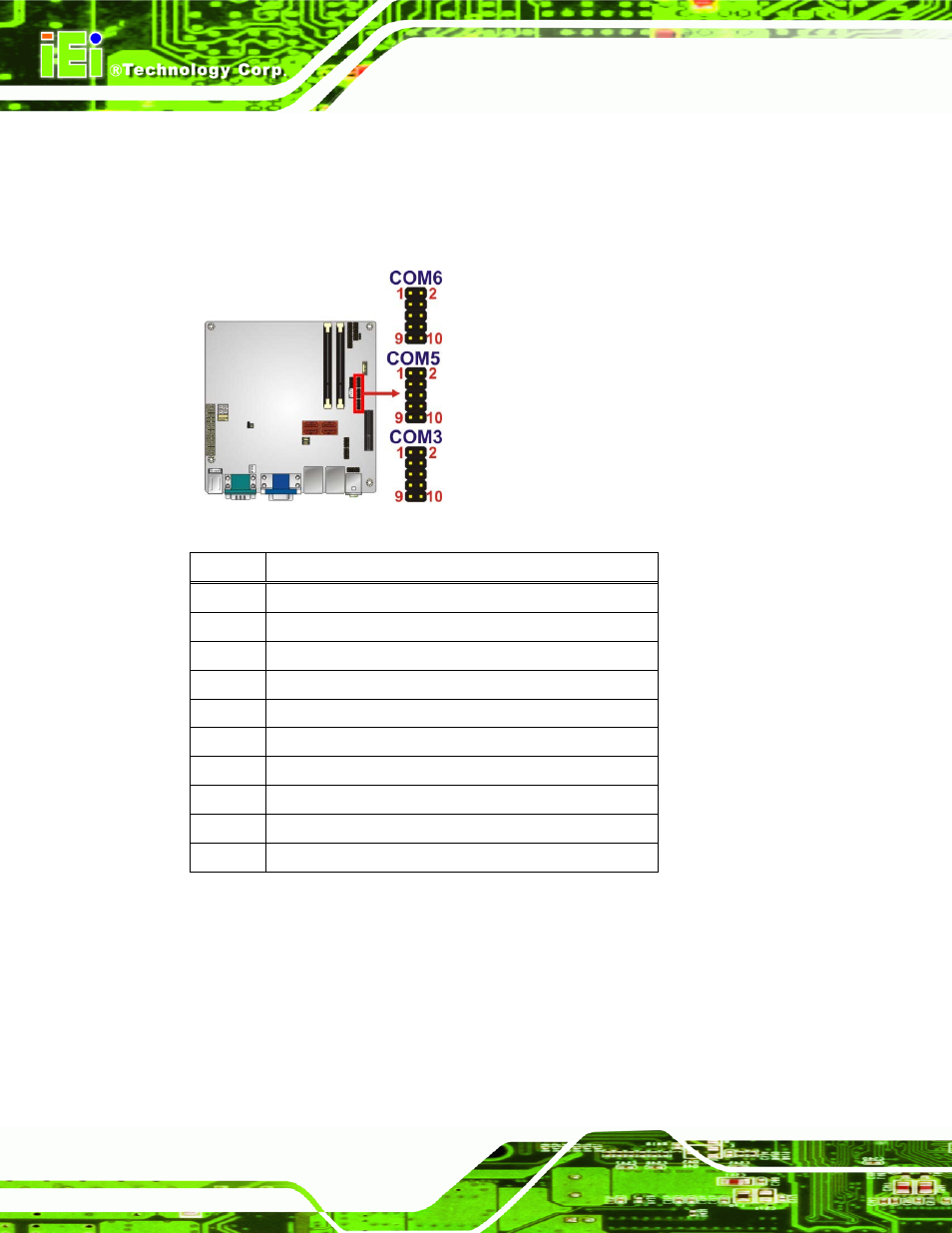

Figure 3-16: RS-232 Serial Port Connector Locations

PIN NO.

DESCRIPTION

1 -NDCD1

2 -NDSR1

3 NSIN1

4 -NRTS1

5 NSOUT1

6 -NCTS1

7 -NDTR1

8 -XRI1

9 GND

10 GND

Table 3-15: RS-232 Serial Port Connector Pinouts

3.2.16 Serial Port Connector (RS-422/RS-485)

CN Label:

COM4

CN Type:

4-pin wafer

CN Location:

See Figure 3-16
