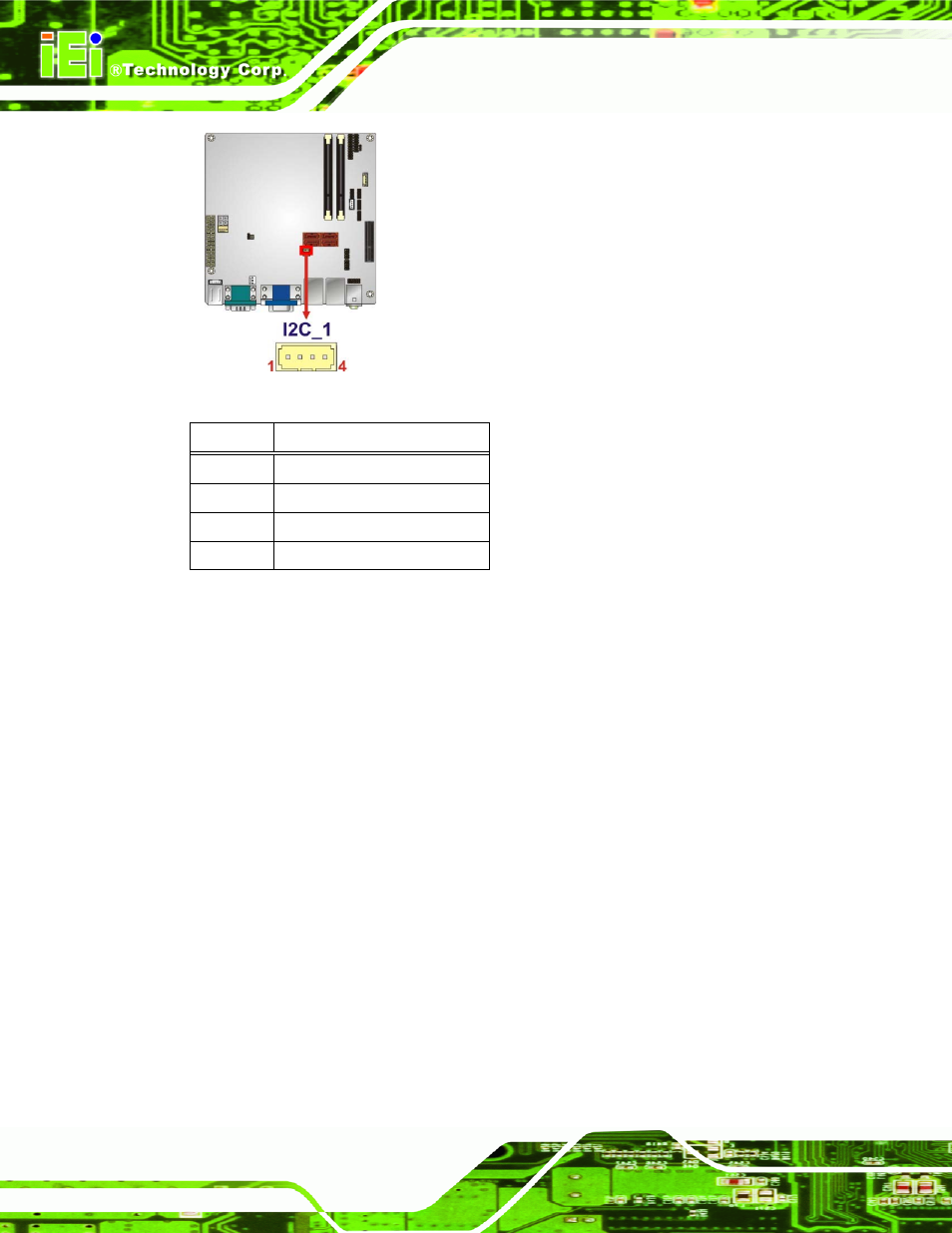

Figure 3-11: I2C Connector Pinout Location

Pin Description

1 +5V

DUAL

2 PCH_GP38_PU

3 PCH_GP39_PU

4 GND

Table 3-11: I2C Connector Pinouts

3.2.11 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-12

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.
