Page 74

KINO-945GSE2 Motherboard

Page 62

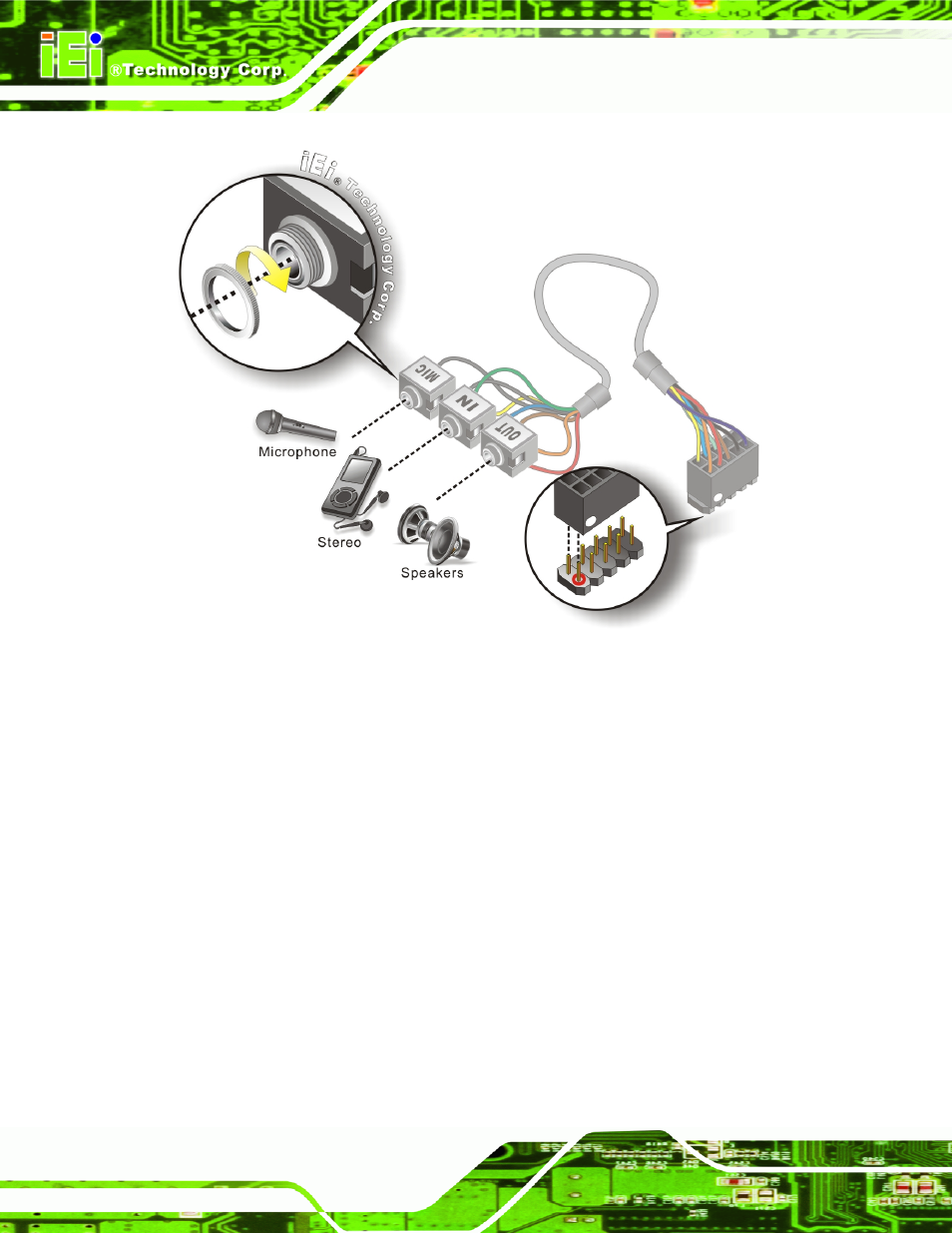

Figure 4-10: Audio Kit Cable Connection

Step 3:

Connect the audio devices. Connect speakers to the line-out audio jack.

Connect the output of an audio device to the line-in audio jack. Connect a

microphone to the mic-in audio jack.

Step 0:

4.7.2 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two

independent cables. Each cable is then attached to a D-sub 9 male connector that is

mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

Step 1:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.
