KINO-945GSE2 Motherboard
Page 60
Pin Description
Open 1440 x 900, 48-bit
1-2 1024 x 768, 24-bit
3-4 1366 x 768, 24-bit
1-2, 3-4 1280 x 1024, 48-bit
Table 4-9: LVDS2 Panel Resolution Settings
The connector location is shown below.

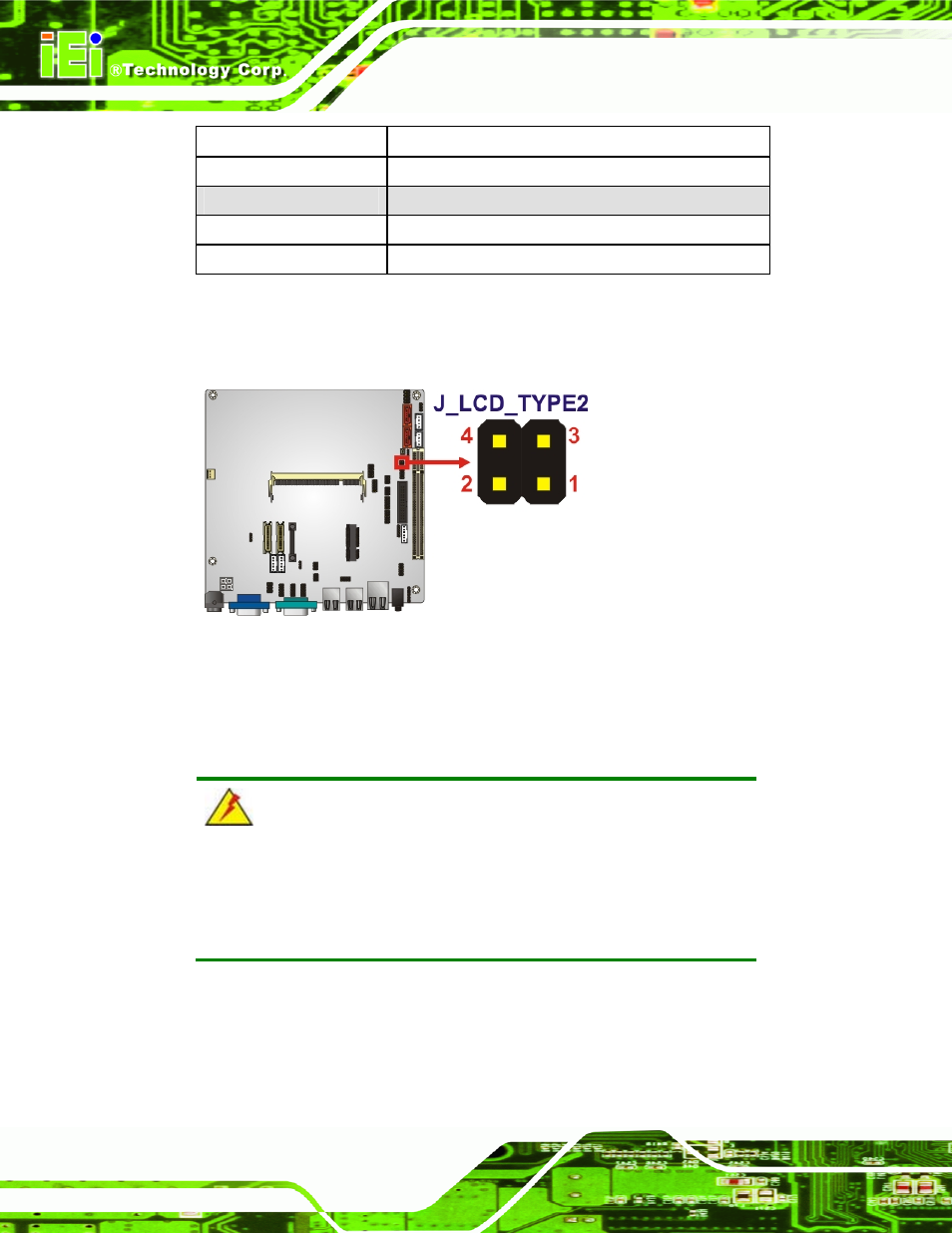

Figure 4-9: LVDS2 Panel Resolution Jumper Location
4.6 Chassis Installation
4.6.1 Airflow
WARNING:
Airflow is critical to the cooling of the CPU and other onboard
components. The chassis in which the KINO-945GSE2 must have air
vents to allow cool air to move into the system and hot air to move out.
The KINO-945GSE2 must be installed in a chassis with ventilation holes on the sides
allowing airflow to travel through the heat sink surface. In a system with an individual
power supply unit, the cooling fan of a power supply can also help generate airflow
through the board surface.
