KINO-945GSE2 Motherboard

Page 2

1.1 Introduction

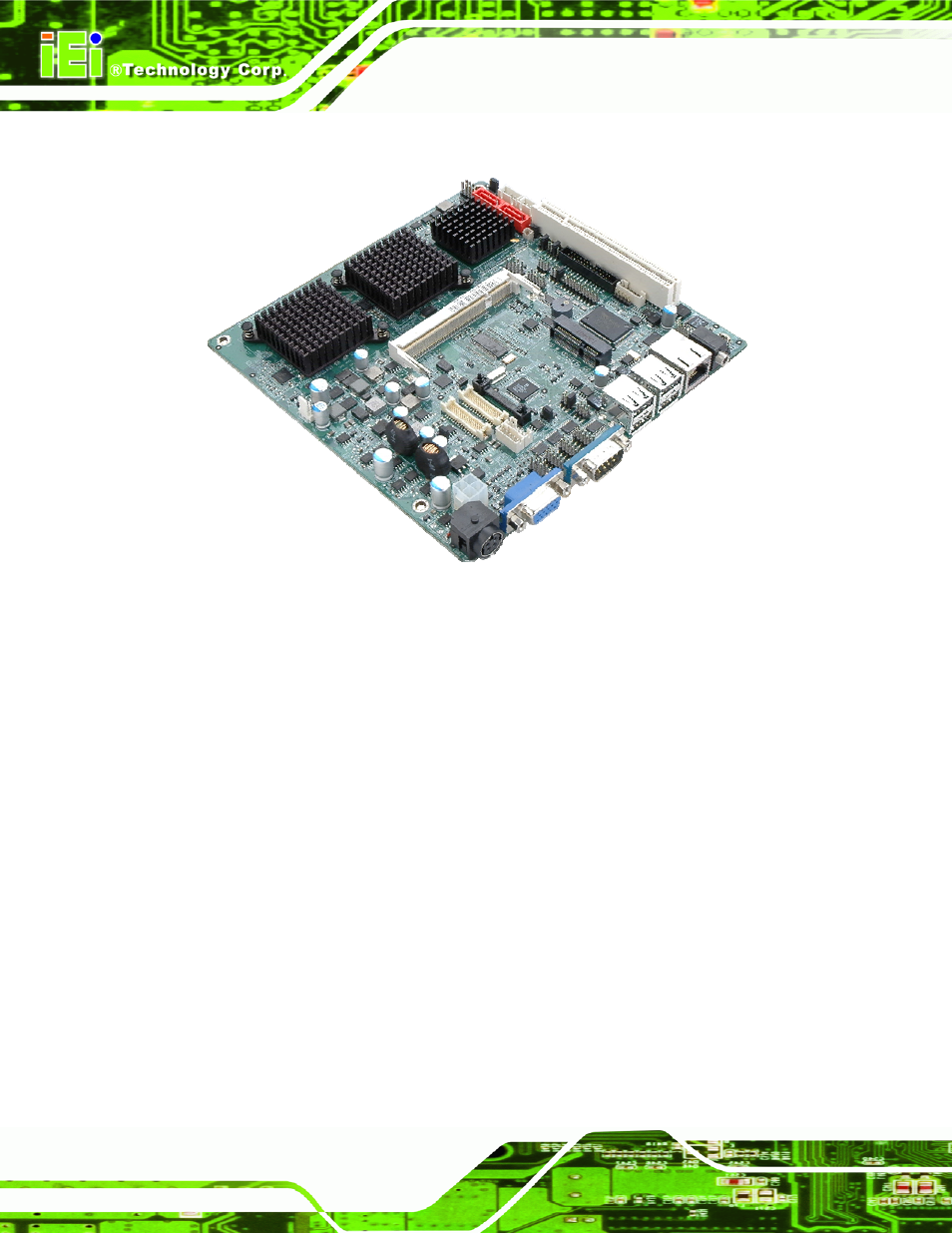

Figure 1-1: KINO-945GSE2

The KINO-945GSE2 Mini-ITX motherboards are embedded 45

nm Intel® Atom™

processor platforms. The embedded Intel® Atom™ N270 processor has a 1.60 GHz clock

speed, a 533 MHz FSB and a 512 KB L2 cache. The KINO-945GSE2 also supports one

200-pin 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM. The board comes with VGA,

18-bit dual-channel LVDS and 24-bit dual-channel LVDS video outputs. The

KINO-945GSE2 also comes with a PCI expansion slot, PCIe Mini card slot, onboard

AC’97 audio, four RS-232 serial ports, two RS-232/422/485 serial ports, six USB 2.0 ports,

and two SATA ports.
