KINO-945GSE2 Motherboard
Page 45
3.3.5 USB Connectors
CN Label: USB1 & USB2
CN Type: USB port
CN Location: See
6
Figure 3-23
CN Pinouts: See
6
Table 3-28
The KINO-945GSE2 has one external USB 2.0 port. The ports connect to both USB 2.0
and USB 1.1 devices.
Pin Description Pin Description
1 VCC 5 VCC
2 DATA- 6 DATA-
3 DATA+ 7 DATA+
4 GND 8 GND
Table 3-28: USB Port Pinouts
3.3.6 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See
6
Figure 3-23
CN Pinouts: See
6
Figure 3-27 and
6
Table 3-29
The KINO-945GSE2 has a single 15-pin female connector for connectivity to standard
display devices.

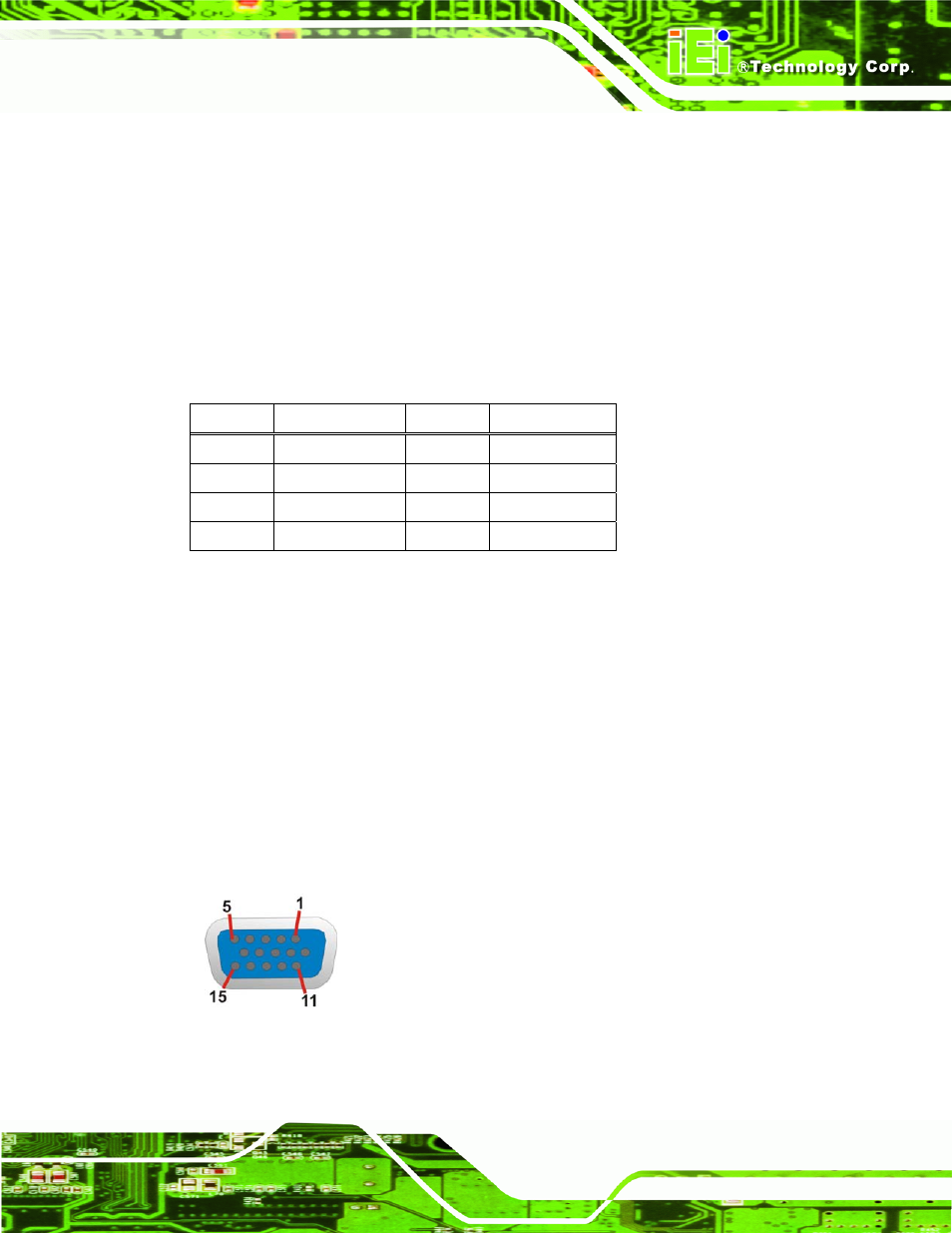

Figure 3-27: VGA Connector
