KINO-945GSE2 Motherboard

Page 37

3.2.17 Serial Port Connectors (RS-422/485)

CN Label:

JP3 (for COM4) & JP5 (for COM6)

CN Type:

6-pin header

CN Location:

See Figure 3-18

CN Pinouts:

See

6

Table 3-19

Provides the RS-422 and RS-485 communication pins for COM4 and COM6.

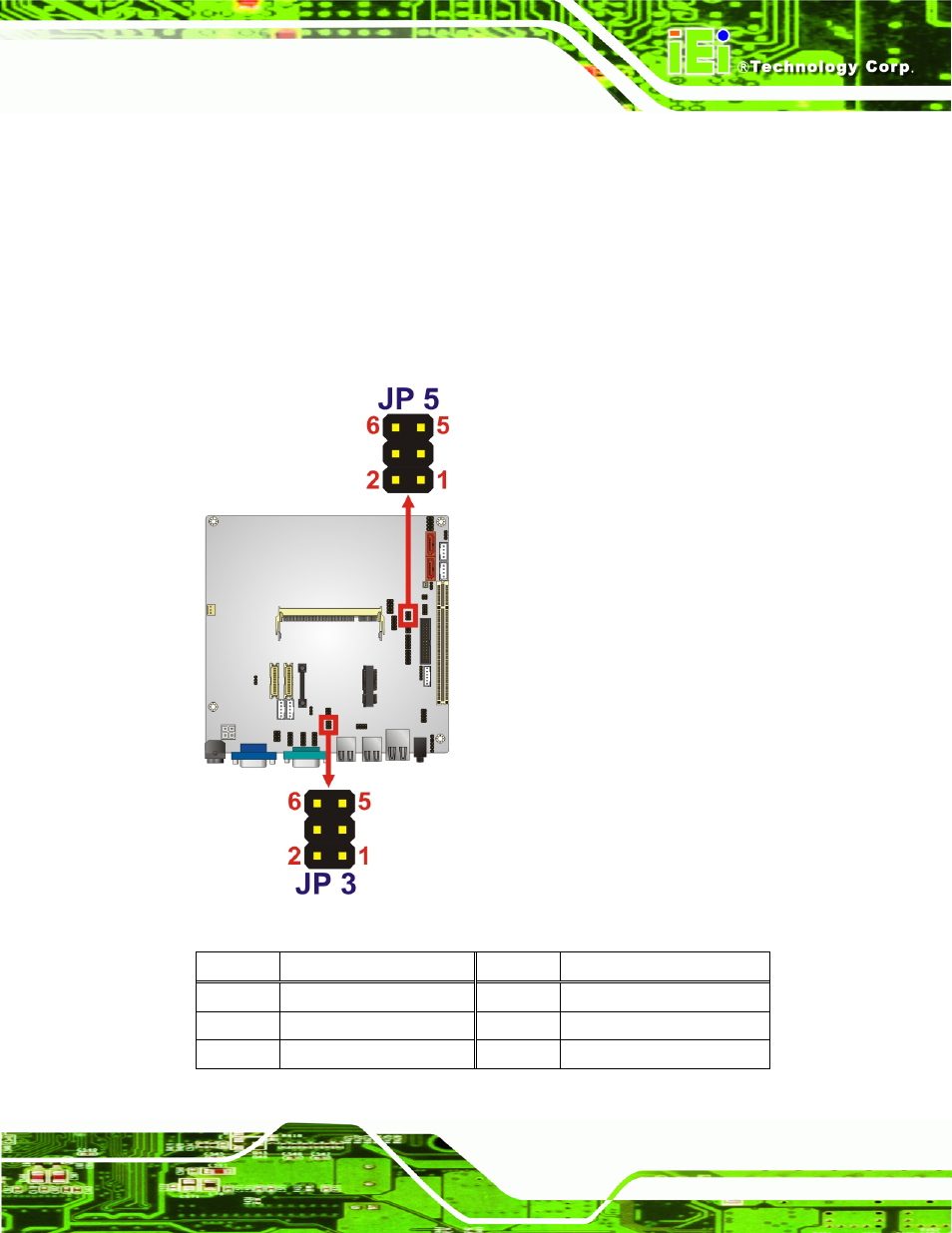

Figure 3-18: RS-422/485 Connector Pinout Locations

Pin Description

Pin Description

1 TX_422-

2 TX_422+

3 RX_422-

4 RX_422+

5 D_485-

6 D_485+

Table 3-19: RS-422/485 Connector Pinouts
