KINO-945GSE2 Motherboard

Page 35

3.2.15 SATA Power Connectors

CN Label:

SATA_PWR1 and SATA_PWR2

CN Type:

4-pin wafer

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-17

Use the SATA Power Connector to connect to SATA device power connections.

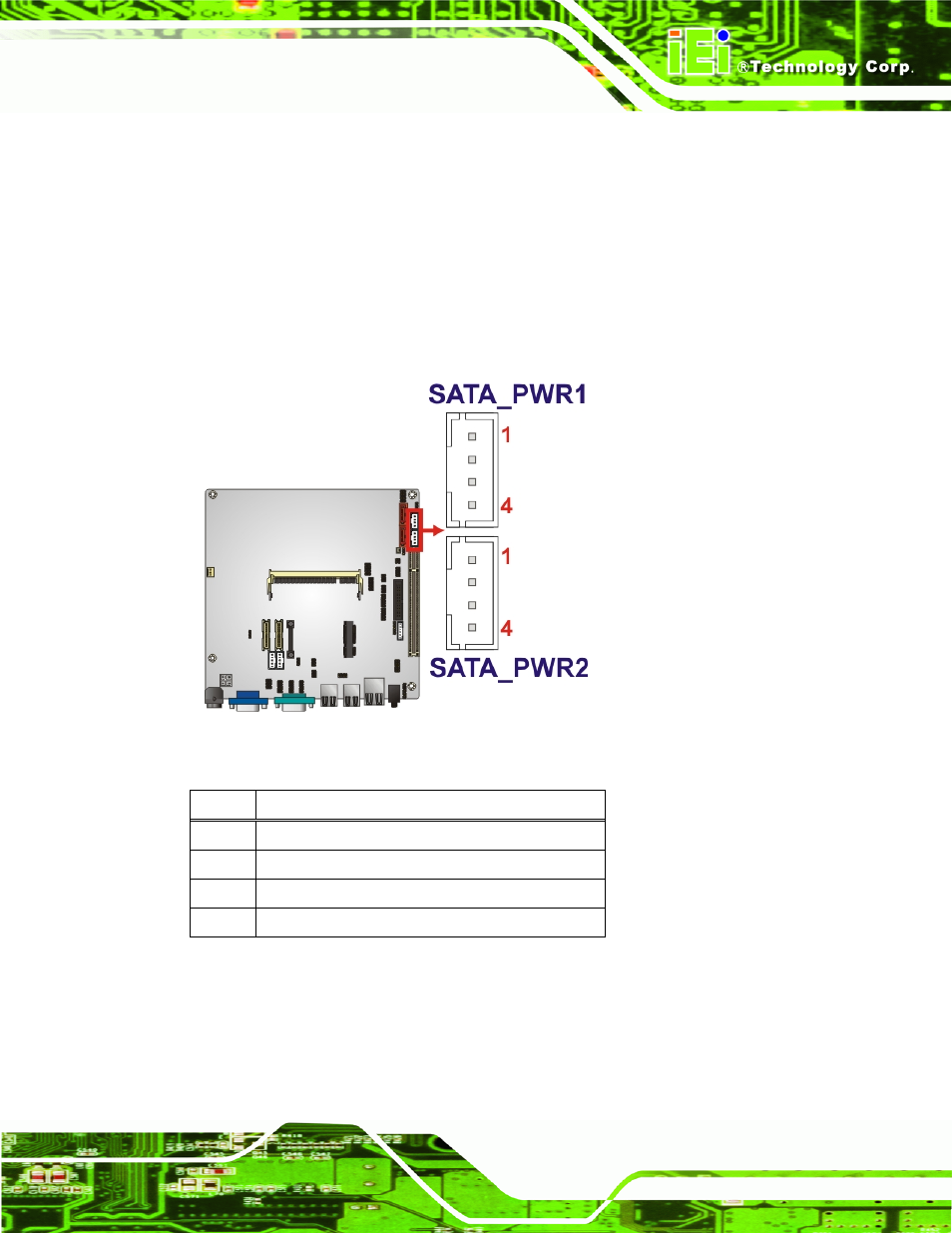

Figure 3-16: SATA Power Connector Locations

Pin Description

1 5

V

2 GND

3 GND

4 12

V

Table 3-17: SATA Power Connector Pinouts
